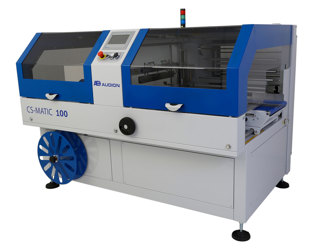

CS-Matic 100

All-electric high performance side sealer

The Audion CS-Matic 100 delivers excellent performance and high speed from a continuous and fully automatic side sealing system.

This high speed packing solution is working from centrefolded polyolefin, PVC or polyethylene film. Product feed and film wrap is achieved by a film inverter, after which the products are processed by an automatic conveyor to be sealed both laterally and crosswise, right-sized, thus saving film.

The Audion CS-Matic 100 facilitates a wide range of product heights and widths and unlimited product lengths through the use of a continuous side-seal system. The integrated product sensors generate the ideal bag length around the product and control the adjustable seal bar (PTFE-coated), allowing virtually any product to be packed at high speed, up to 4200 packs per hour.

The CS Matic 100 can be set up in minutes, is easy to program, and offers multiple operating modes for optimized performance and convenience.

This side sealer does not require compressed air, enabling you to position it anywhere in your production area. Paired with the Audion shrink tunnel TM18 it forms an outstanding high-production shrink wrapping packaging system, being one of the most versatile automatic side sealers on the market today.

To sum up, 3 indisputable advantages:

Unlimited product length can be packed
Output up to 4200 packs/hour
Less waste film, resulting in lower costs

This makes our machine unique

We work together with you in providing the best quality packaging machines to help you grow your business

Industry 4.0

Also known as smart industry. The prerequisite for this type of environment is that the whole (production) process runs fully automatically, from the input of raw materials to the dispatch of a finished product. The CS-Matic 100 is designed and built according to these advanced concepts.

Piece of cake

That is the set-up of the CS-Matic 100. The infeed conveyor is released from the square for easy product loading and processing. Quick film changeover and 50 program memory allow for a quick product setup-up. These are just a few examples of the features built-in the CS-Matic 100.

Make from every operator an expert

The 7“ full color touch screen makes it easy to navigate through the interfaces. Pop-up key packing statistics like production rate and efficiency in a second and continual monitoring of product length to detect packing errors. The CS-Matic 100 makes from every operator an expert - control it!

Use different materials

The Audion CS-Matic 100 can handle centrefolded polyolefin, PVC or polyethylene film. When using coex mailer film the CS Matic Orderfulfillment version is available, equipped with photocell sensor for non-transparent or printed film.

Videos

Audion CS-Matic 100

Packing visor masks

Watch video

Audion shrink sealer combination

Shrink packaging carton boxes, broccoli and cucumbers.

Watch video

A data-driven packaging machine

This all-electric automatic packer with continuous side sealer and a longitudinal intermittent sealing system is ready for the future and built with the following features:

Automatic adjustment of the center seal
Automatic control of the sealing bar height
User-friendly LCD control panel, a 7” full-colour touch screen
Storage / readout of process statistics (counter, measurements of pack length, real time output, machine performance, control of irregular packs)
Conveyor speed electronically adjustable
Single pack/ multi-pack mode
Continuous fully electric 4.0 packer with 2 belts
Cross sealing bar with PTFE-coated sealing blade controlled by an inverter and encoder
Faulty packs detection
Inverter and encoder controlled
This system is able to check all operations, simply and precisely
Power and control section
Electronically controlled conveyor belt speed
Reduced power consumption

Video's of CS-Matic 100

Benefits

The CS Matic 100 gives you the following benefits

Food Brochure

Very fast cycle:: Up to 4200 packs per hour.
Flexibility:: Possibility of packing single packs or multipacks at any length.
Easy operation with touchscreen control system:: Sealtime, seal temperature and belt speed can easily be adjusted.
Automated sealing:: Continuous cycle sealing.
Motorized systems:: Sealing bar and conveyors are controlled by an inverter and encoder.
Wide film choice:: The CS Matic 100 can handle polyolefin, polyethylene and pvc centrefolded film.
User-friendly touchscreen:: Easy navigation through the menu structure and safe control of all packaging parameters.
Built-in safety features:: An emergency stop button is standard equipped.

Everything-under-one-roof, match the CS-Matic 100 with Audion film

Click here

Explore our options

Customize your CS-Matic 100 to your needs

Safety photocell

To ensure cross seal bar does not make contact with your product.

Stainless steel

Stainless steel frame for applications in the food industry.

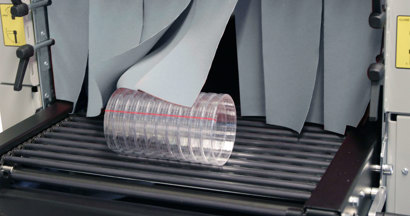

Shrink tunnel

For a strong, high clarity protection and professional presentation of your product. The tunnel is equipped with a heating element that shrinks the film wrap around the product, when moving through the machine.

Conveyor

With the Audion conveyors you can easily move your product to the Audion CS-Matic 100. The conveyor can be adjusted according to the size and shape of your product to create a process as smooth as possible. This will increase your production efficiency and effects the output in a positive way.
