Audion Temperature Measurement with Round Probe (ATM-R)

Designed for precise seal temperature verification

The ATM-R, equipped with a specialized round probe, is designed to measure the temperature between the sealing bands of Audion's validatable continuous band sealers, such as the D 542 AVTSV and D 542 AHSV. This advanced device ensures accurate adjustment of the seal temperature, which is essential after replacing sealing bands to maintain optimal performance.

The ATM-R supports Audion’s validatable continuous band sealers by delivering precise temperature measurements to meet stringent industry standards.

Key features include:

Conforms to the industry requirements
The test result is clearly presented on the digital screen

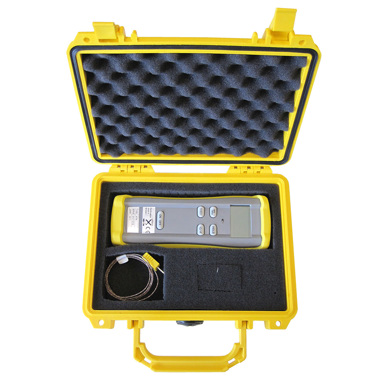

Packed in a solid case

Calibration, Verification and Validation Services

The Audion validatable packaging machines require calibration, verification and validation services on a regular basis. Audion offers a wide range of instruments and solutions enabling users to test and verify their packaging machines and seal integrity, in order to meet the high market requirements.

Available verification instruments include:

ATM (Audion Temperature Meter): to verify the seal temperature of temperature controlled industrial sealers and validatable vacuum chambers.
ATM-R (Adion Temperature Controller with Round Probe): to verify the seal temperature of Audion validatable continuous sealers D 542 AHSV and D 542 AVTSV).
AFMR (Audion Force Measurement Ring): to verify the seal force of a validatable industrial sealer or validatable continuous bandsealer and to adjust the sealer in accordance with the measured values (Power Sealer, MSIDV, D 542 AHSV/ D 542 AVTSV).
ASPM (Audion Seal Pressure Measurement): to verify the seal pressure realized by compressed air (vacuum chambers and Speedpack) and to adjust the machine in accordance with the measured values
AVLM (Audion Vacuum Level Measurement): to verify the vacuum pressure

Seal Integrity Test (SIT) as a service which includes:

Seal check according to ISO 11607-2 (to check intact seal for a specified seal width)
Dye penetration test according to ASTM F1929 (to check no channels or open seals)
Peel test according to EN 868-5 Annex D (to check tensile strength of seal)

Audion Factory Calibration (incl. Calibration Certificate): (Re-) calibration executed by certified engineers certifies the preciseness of the critical sealing parameters of the packaging machine. Reference standards calibrated under ISO17025 accreditation
IQ/OQ Check:

- Installation Qualification (IQ): an Audion service engineer inspects the packaging machine in your operating environment, checking the following aspects: correct installation, functionality, specifications, critical process parameters and documents. Includes training & certificate.
- Operational Qualification (OQ): an Audion engineer tests and will register seal integrity of your bag(s) in a test plan. Includes determination of sealing parameters, tolerances, acceptable criteria and worst case testing.

ASPM videos

Specifications

Please see below more specifications of the ATM-R:

Calibration & Validation Brochure

Round probe:: Suitable for Adion Continuous Bandsealers (D 542 AHSV | D 542 AVTSV)
Measurement range:: -50°C to 260°C
Resolution:: 0,1°C (up to 199,9°C) / 1 °C (above 200°C)
Accuracy display unit:: 0.3% of reading + 1°C
Accuracy sensor:: ± 2.2 °C or ± 0.3% of measurement (whichever is the larger)
Measuring rate:: 2,5 per second
Operating conditions:: +5 ... 50 °C, 30 – 70% RH (non-condensing)
Battery:: Standard 9V battery
Battery life:: 100 hours
Cable length:: 1 meter
Dimensions:: 63 mm (W) x 186 mm (L) x 40 mm (D)
Weight:: 350 grams
