Audion Temperature Measurement
Accurate temperature measurement for Audion validatable continuous band sealers (D 542 AHSV and D 542 AVTSV)
Interested in our ATM-R?
We are more than willing to support you with your request.
Designed for precise seal temperature verification
The ATM-R, equipped with a specialized round probe, is designed to measure the temperature between the sealing bands of Audion's validatable continuous band sealers, such as the D 542 AVTSV and D 542 AHSV. This advanced device ensures accurate adjustment of the seal temperature, which is essential after replacing sealing bands to maintain optimal performance.
The ATM-R supports Audion’s validatable continuous band sealers by delivering precise temperature measurements to meet stringent industry standards.
Key features include:
- Conforms to the industry requirements
- The test result is clearly presented on the digital screen

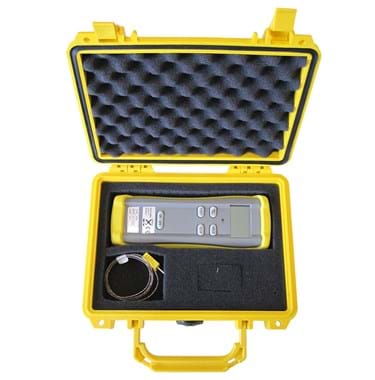

- Packed in a solid case
Calibration, Verification and Validation Services
The Audion validatable packaging machines require calibration, verification and validation services on a regular basis. Audion offers a wide range of instruments and solutions enabling users to test and verify their packaging machines and seal integrity, in order to meet the high market requirements.
- Available verification instruments include:
- ATM (Audion Temperature Meter): to verify the seal temperature of temperature controlled industrial sealers and validatable vacuum chambers.
- ATM-R (Audion Temperature Controller with Round Probe): to verify the seal temperature of Audion validatable continuous sealers D 542 AHSV and D 542 AVTSV).
- AFMR (Audion Force Measurement Ring): to verify the seal force of a validatable industrial sealer or validatable continuous bandsealer and to adjust the sealer in accordance with the measured values (Power Sealer, MSIDV, D 542 AHSV/ D 542 AVTSV).
- ASPM (Audion Seal Pressure Measurement): to verify the seal pressure realized by compressed air (vacuum chambers and Speedpack) and to adjust the machine in accordance with the measured values
- AVLM (Audion Vacuum Level Measurement): to verify the vacuum pressure
-
Seal Integrity Test (SIT) as a service which includes:
- Seal check according to ISO 11607-2 (to check intact seal for a specified seal width)
- Dye penetration test according to ASTM F1929 (to check no channels or open seals)
- Peel test according to EN 868-5 Annex D (to check tensile strength of seal)
- Audion Factory Calibration (incl. Calibration Certificate): (Re-) calibration executed by certified engineers certifies the preciseness of the critical sealing parameters of the packaging machine. Reference standards calibrated under ISO17025 accreditation
- IQ/OQ Check:
-
- Installation Qualification (IQ): an Audion service engineer inspects the packaging machine in your operating environment, checking the following aspects: correct installation, functionality, specifications, critical process parameters and documents. Includes training & certificate.
- Operational Qualification (OQ): an Audion engineer tests and will register seal integrity of your bag(s) in a test plan. Includes determination of sealing parameters, tolerances, acceptable criteria and worst case testing.
Specifications
Please see below more specifications of the ATM-R:
- Round probe:
- Suitable for Audion Continuous Bandsealers (D 542 AHSV | D 542 AVTSV)
- Measurement range:
- -50°C to 260°C
- Resolution:
- 0,1°C (up to 199,9°C) / 1 °C (above 200°C)
- Accuracy display unit:
- 0.3% of reading + 1°C
- Accuracy sensor:
- ± 2.2 °C or ± 0.3% of measurement (whichever is the larger)
- Measuring rate:
- 2,5 per second
- Operating conditions:
- +5 ... 50 °C, 30 – 70% RH (non-condensing)
- Battery:
- Standard 9V battery
- Battery life:
- 100 hours
- Cable length:
- 1 meter
- Dimensions:
- 63 mm (W) x 186 mm (L) x 40 mm (D)
- Weight:
- 350 grams
Related products
Audion Seal Pressure Measurement
Device to verify the seal pressure of sealers not having a loadcell (Validatable Audionvac, Speedpack)
Audion Vacuum Level Measurement
Device to verify the vacuum level (in validatable vacuum chambers)
Audion Vacuum Level Measurement
Device to verify the vacuum level (in validatable vacuum chambers)

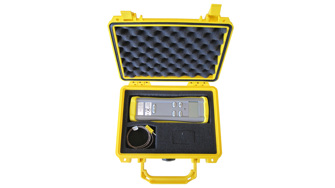

Audion Temperature Measurement
For temperature controlled industrial sealers / validatable vacuum chambers

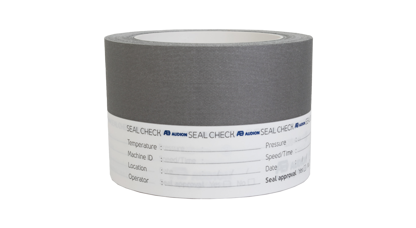

Seal Check Roll
