Power Sealer EX
Explosion-proof steam impulse sealer for packaging in hazardous environments
Interested in our PSR EX?
We are more than willing to support you with your request or run a demo with your packaging
Steam sealer to safely pack explosion sensitive products

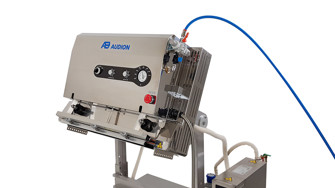

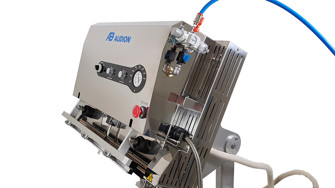

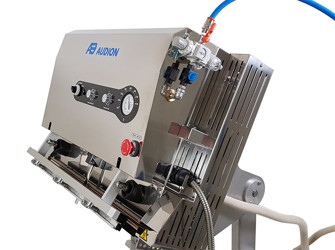

Audion Power Sealer EX (explosion proof)
Specially developed for potentially explosive atmospheres (ATEX zones) containing flammable substances, vapours, gases, or fine dusts. It allows you to safely package explosion-sensitive products directly at the production site – without the need for transport to a safe zone.
Explosion risk arises from a mixture of air and a flammable substance/gas plus an ignition source; the PSR EX eliminates this risk using steam technology and is therefore ideal for:
-
Pharmaceutical Industry: Spark-free packaging of powders and sensitive substances.
-
Chemical Industry: Flammable chemicals, solvents, fine powders, and substances with a low flash point.
-
Food and Fine Dust Industry: Flour, sugar, cocoa, starch, and grain powders (dust cloud hazard).
-
Metallurgical and Additive Manufacturing: Metallic powders, including those for 3D printing (spark-free).
-
Petrochemical, Oil & Gas: Packaging of catalyst powders, additives, granules, and samples in ATEX zones with flammable gases/vapours (refineries, storage, drilling platforms).
Safe operation:
This industrial steam sealer is equipped with an Air PLC controller on which you easily set the process variables. The sealing process is started by pressing the foot pedal, after which pressurized steam is supplied to the sealing bar. During the sealing process, the steam is brought under pressure in the sealing tube on the lower sealing bar. The sealing temperature corresponds to the pressure of the steam supply, ensuring your package to be safely sealed with a powerful 8 mm seal.
Optimized workflow:
The Audion Power Sealer EX optimizes your packaging process, as products no longer need to be moved from the hazardous area to a safe zone for packing, but can be safely packed at the production site. This reduces the required workspace and saves valuable production time.
Customized packaging solution:
This Audion packaging machine is configurable as "sealing-only' or vacuum sealer and as tabletop model or mounted on a convenient mobile support.
To sum up:
- Explosion-proof steam powered sealer operating without electric supply
- Available with vacuum system
- Easy to operate Air PLC controller (seal time, vacuum time)
- Convenient foot operation
- Configurable with optional support
This makes your machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Providing safety and consistent high performance
The absence of a required power supply actively prevents the risk of (static) electricity sparking an explosion. The machine operates and heats its seal bar by means of pressurized steam instead.

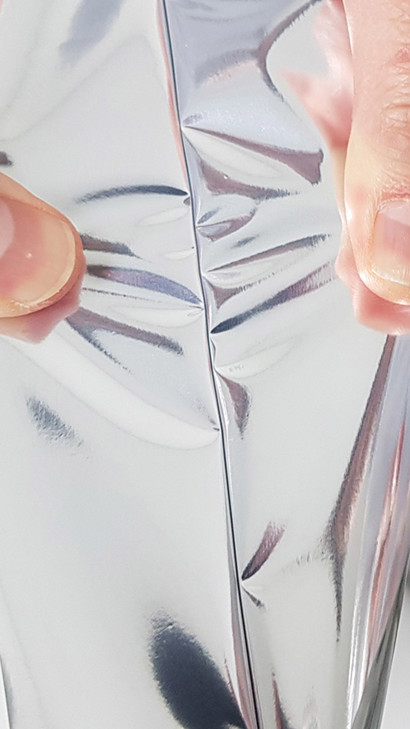

Consistent high seal quality
With a constant steam pressure, the associated seal bar temperature is also constant. As a result, all seals are of equally high quality, even when sealing thick and/or laminated film types.
Tailored to your production requirements
This tabletop packaging solution can be configured for 'sealing only' or as a vacuum sealer. Vacuum sealing allows you to reduce the package size and prevents product movement inside the bag. If required, you can also mount the machine on an optional mobile support for extra flexibility.
Practically maintenance-free
This steam sealer features a stainless steel AISI 304 housing that is easy-to-clean. Since the mechanism is driven by pressurized steam, there are few wearing parts, making this device almost maintenance-free. When fitted with a vacuum system, only cleaning is sufficient.
Videos
On-site preparations required for your Power Sealer EX
Before you can install your steam impulse sealer and benefit from an explosion-proof packaging solution, please take into account this steam sealer requires the following systems to properly function:
- Steam pressure regulator - To adjust the pressure supply of pressurized steam to the sealer.
- Pressure gauge - To check the pressure of pressurized steam at the interface point.
- Steam separator to collect residual moisture
- Steam supply valve - To stop the steam supply after a sealing cycle.
- Bypass valve - To dispose of initial air and water left from the previous operation inside the piping and drain, etc.
- Safety valve - Needed when primary steam pressure is more than 1.0 MPa.
If you do not (yet) meet the above requirements, please contact our sales department for customized advice and available solutions.

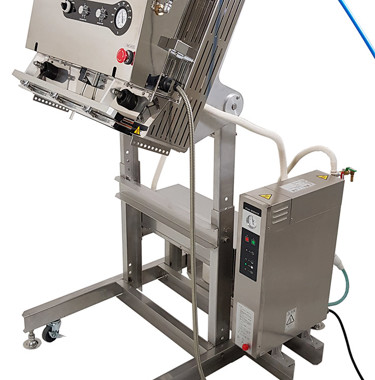

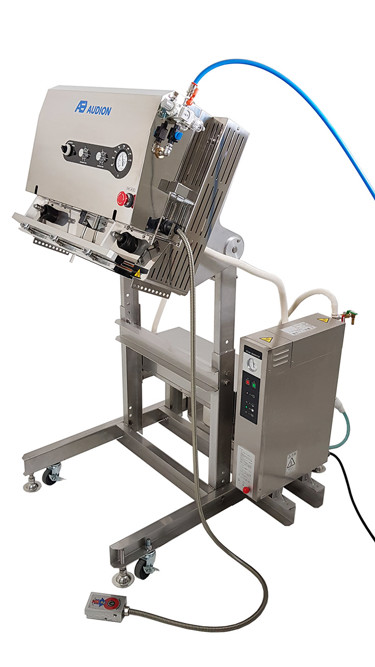

Note: The steam generator shown on the picture (attached to the support) is for demonstration purposes only. Steam generators need to be installed outside the hazardous environment.
Benefits
The Audion PSR EX gives you the following benefits
- Explosion-proof:
- Operates without electrical supply - uses compressed steam instead.
- Easy-to-maintain:
- Stainless steel easy-to-clean housing and low maintenance required.
- Saves production time:
- Can pack your products directly within a hazardous environment.
- Guaranteed product protection:
- Constant steam pressure ensures a high-quality seal after each cycle.
- Minimal operating training required:
- Easy to operate Air PLC controller to set seal time / vacuum time and foot operated.
Options
The following options are available on the Audion PSR EX
- Extended nozzle:
- Extended nozzle 240 mm (only for 800 / 1000 VAC PSR EX ).
- Steam pressure generator:
- To be quoted based on your individual packaging requirements.
- Piping system from steam generator to steam sealer:
- To be quoted based on your individual packaging requirements.
Accessories
The following accessories are available on the Audion PSR EX
- Support:
- Enables machine height and sealing angle adjustment.
- Worktable:
- Supports (heavier) bags to facilitate having both hands free during the sealing process.
- Shipment packaging:
- Protection for transportation.
Specifications
More specifications of the Audion PSR EX
- Type of machine:
- Steam sealer
- Seal length:
- 610 mm | 800 mm | 1000 mm
- Seal width:
- 8 mm
- Seal system:
- Steam impulse / single side seal
- Vacuum system:
- Vacuum ejector
- Control system:
- Air PLC controller (time and temperature controlled)
- Pneumatic supply:
- 0.55 MPa
- Steam supply:
- 0.3 – 0.8 MPa (depending on required sealing temperature)
- Steam flow:
- Over 10 kg/h
- Vacuum time:
- Approx. 1 – 20 seconds (VAC PSR EX models only)
- Max. seal temperature:
- Approx. 130 – 175 °C (Corresponding value from the saturated vapor pressure)
- Heating time:
- Approx. 1 – 20 seconds
- Cooling time:
- Approx. 3 seconds (fixed)
- Compatible with:
- Explosion zone 1 (class 1, division 1) zone 2 (class 1, division 2 and ATEX
Explore our options
Customize your PSR EX to your needs
Vacuum Power Sealer EX
Enables to vacuum your products to reduce the overall package size and/or prevents movement of (sharp) products inside the bag that could damage the film
Ergonomic and flexible work posture
By mounting this tabletop steam sealer on a mobile support (optionally with a work table), you can adjust both the machine height and the sealing angle. This provides more flexibility to adjust the machine perfectly to your product and the operator's ideal working position.
Discover our Power Sealer line:
This no-nonsense Power Sealer forms the solid basis of the renowned Power Sealer line. The outstanding 5 mm sealing performance is achieved by a pneumatic bi-active and time-controlled impulse sealing system. Optional vacuum system feature can be integrated.
This model is validatable and generates an 8 mm temperature- and time controlled seal. The validation enables that critical seal variables like seal force, seal temperature and seal time are being controlled. Optional vacuum system feature can be integrated.
The Power Sealer TC is a high-performance temperature controlled sealing machine designed for demanding packaging needs in the high-tech and food industries. It features a durable stainless steel housing, touchscreen interface, and powerful bi-active and pneumatic seal bars that ensure consistent, airtight seals. Optional vacuum system feature can be integrated.
The next step in the Power Sealer line is the Plus version. With its unique and most precise system of validation it meets todays' most stringent packaging requirements. 8 mm Temperature- , time- and force controlled seal. Includes Audion Touch Techware. Optional vacuum system feature can be integrated.
Our flagship model in the Power Sealer line. Especially designed for dusty, humid or regulated (clean room) production environments. Highly advanced validatable impulse sealer. An 8 mm temperature-, time and force controlled seal. Includes Audion Touch Techware. Optional vacuum system feature can be integrated. Also available in Bag-in-box configuration.
The Power Sealer TC XL and Power Sealer PLUS XL have the largest sealing length of the Audion Power Sealer range. With a sealing length of 2500 mm they can effortlessly provide your largest products with customized packaging or protective covers by means of an 8 mm seal. Available in a temperature controlled model (PSR TC XL) and a validatable model (PSR PLUS XL) with validation on temperature-, time- and seal force controlled sealing. Optional vacuum system feature can be integrated.
Unique steamsealer enabling bags to be sealed without electrical power supply. Instead, it uses pressurized steam to operate. suitable for explosive environments. 8 mm temperature controlled seal. Optional vacuum system feature can be integrated.
Let's have a chat
Do you want to know what the Audion PSR EX can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most.
International Sales
Audion
Related products
FAQ Power Sealer EX
Frequently asked questions regarding Power Sealer EX
PSR EX
The Power Sealer EX is an industrial steam impulse sealer for closing bags in potentially explosive environments. The machine operates without an electrical power supply and uses pressurised steam to heat the lower sealing bar. You start the sealing cycle with the foot pedal; the steam pressure determines the corresponding sealing temperature. The EX produces an 8 mm wide seal and requires steam and compressed air. The machine is available for sealing only or with a vacuum system.
The Power Sealer EX is suitable for hazardous zones 1 and 2. Whether the configuration suits your application depends on the substances present and the permitted temperature limits. For combustible dust, suitability for the relevant dust zone must be assessed separately. The steam generator must be installed outside the hazardous area.
The Power Sealer EX is intended for packaging at locations with a potentially explosive atmosphere. Applications include pharmaceutical powders, chemical products, food products such as flour and sugar, metal powders for 3D printing and petrochemical samples. Whether this packaging machine is suitable depends on the product, zone classification and required sealing conditions.
The Power Sealer EX is available with seal lengths of 610, 800 and 1000 mm and produces an 8 mm wide single-sided steam impulse seal. The required compressed air pressure is 0.55 MPa (5.5 bar). The steam supply is 0.3 to 0.8 MPa (3 to 8 bar), with a steam flow of more than 10 kg per hour. The sealing temperature is approximately 130 to 175 °C, depending on the steam pressure. The specified heating time is approximately 1 to 20 seconds and the cooling time approximately 3 seconds.
Yes. The vacuum version, VAC PSR EX, has a vacuum ejector for vacuum-packaging bags. The vacuum time can be set from approximately 1 to 20 seconds via the Air PLC. Vacuum can reduce packaging volume and limit product movement inside the bag. An extended 240 mm vacuum nozzle is available for the 800 and 1000 mm VAC PSR EX models.
The Power Sealer EX requires a steam supply and a compressed air connection. The steam installation requires a steam pressure regulator, pressure gauge, steam separator, steam supply valve and bypass valve. Audion also specifies a safety valve when the primary steam pressure exceeds 1.0 MPa (10 bar). The steam generator must be located outside the hazardous area. Audion supplies the generator and piping system on request; the installation must comply with the machine instructions and your site's safety requirements.
The Power Sealer EX does not have the same monitoring of sealing temperature, sealing time and sealing pressure as the validatable PLUS models. Sealing temperature is determined by the steam pressure; time settings are controlled via the Air PLC. This control alone is not sufficient for medical packaging with validation requirements. The PLUS models offer more extensive parameter monitoring, but this does not automatically make them suitable for use in an ATEX zone.
Both. The Power Sealer EX is a benchtop model that can also be mounted on an optional mobile frame. This allows you to adjust the machine height and sealing angle to suit your product and working position. An optional worktable supports heavier bags, while foot operation keeps both hands free to position the bag. The frame and accessories must also be suitable for the hazardous environment concerned.
The Power Sealer EX requires little maintenance because its steam-driven mechanism has few wear parts. The housing is made of AISI 304 stainless steel and is easy to clean. The vacuum system must also be cleaned on the vacuum version. Follow the machine instructions for cleaning, inspection and maintenance, and include the steam and compressed air facilities in the maintenance plan.
With the Power Sealer EX, you can package products directly in an ATEX zone for which the machine is suitable. You no longer need to move them to a safe zone solely for packaging. This can reduce internal transport movements, workspace requirements and production time. The Air PLC and foot operation make the machine easy to operate; operators must still be trained to work with the machine in a potentially explosive environment.
