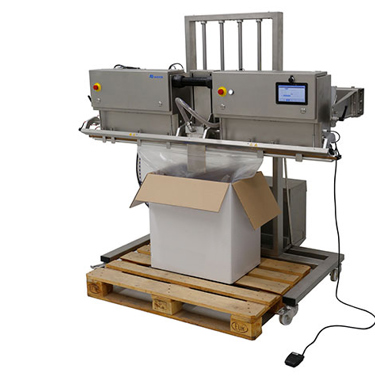

ETO 22009 Bag In Box

Product

Power Sealer PLUS IP65 Bag-in-Box

Advanced industrial vacuum sealer for vacuum sealing heavy bags under most stringent requirements

Interested in the Audion Power Sealer PLUS IP65 Bag-in-box?

International Sales

We are more than willing to support you with your request or run a demo with your packaging

Advanced validatable Bag-in-Box vacuum sealing

Audion's revolutionary PLUS IP65 Bag-in-Box vacuum sealer provides high-class sealing technology ensuring optimum control of process parameters in demanding environments like food or powder packaging in pharmaceutical and chemical industries.

The Bag-in-Box configuration is equipped with software ensuring a fully controlled vacuum sealing of heavy duty bags that are used as a box liner, where the box comes under the sealer via a conveyor, support or pallet. Wide support legs of the frame enable the use of Europallets.

The motorized descent function of the seal head and extra wide stainless steel vacuum nozzle enable an optimized vacuuming as products can be reached closest by the automatic nozzle descent into the bag. Automatic height control can be set in the software and performed by the motorized frame. All together ensuring optimal vacuum performance and resulting into optimal protection of your product.



The bi-active seal bars (1720 mm seal length) produce 8 mm hermetic seals, fully controlled by the integrated Audion Temperature Controller. The advanced Audion Touch Techware facilitates a user-friendly setting of up to 50 recipes, enabling you full control and monitoring of all critical process parameters. Alarms on critical seal parameters such as seal temperature, seal time, seal force and vacuum/gas time can easily be set with precise tolerance. Critical batch and packaging cycle information can be stored and downloaded.

Your Vacuum Power Sealer PLUS IP65 Bag-in-Box benefits:

  • IP65: Suitable for operation in dusty and humid work environments
  • Ultimate control of all critical process variables
  • High-performance vacuum pump integrated
  • Fully compatible with EN 868-5 and DIN 58953, part 7 norms, as with ISO 11607-2 and ISO/TS 16775
  • Standard configured for high-demanding industries with high-standard packaging requirements and quality control

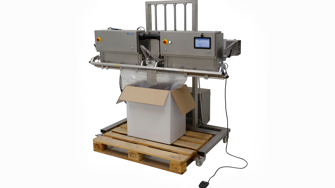

ETO 22009 Bag In Box (2)
PSR 1720 Met Ton
PSR 1720 Front

This makes your machine unique

We work together with you in providing the best quality packaging machines to help you grow your business

In-house developed software and hardware design

The unique construction and software design optimize your productivity and meet the highest standards in vacuum packaging technology. The integrated Audion Temperature Controller ensures every seal is made at the same temperature, ensuring a consistent and hermetic high-quality seal, even during intensive use. Valuable extra options can be selected to create a custom fit solution that best fits your packaging requirements.

Bag-in-Box vacuum packaging

Features like the robust stainless steel housing, powerful extra large 1720 mm bi-active sealing bars, IP65, validation feature and external air exhaust make this industrial sealer the most-advanced bag- in box sealer in its class, reaching the highest degree in validation and prestigious vacuum results to guarantee your product is safely protected for storage or transportation to the next step within the supply chain.

Convenience and optimized perfomance

The motorized frame automatically lowers the seal head and vacuum nozzle for optimal vacuum results. Eventually, multiple cycles of vacuum and gas flush can be used to achieve a lower residual oxygen level. The machine height, along with other critical process variables, can all be set in up to 50 pre-programmed recipes. Together with a heavy-duty seal, this ensures unparalleled product safety. The widely spaced support legs allow you to place your products on a euro pallet under the machine.



Designed for challenging environments

Ultimate product safety and quality thanks to the dust- and splash proof IP65 design to actively prevent both internal and external contamination. The robust stainless steel housing is easy-to-clean and protects the internal elements of the machine from dusty or moist production settings. The optional particle ejection system (PES) clears the vacuum system of residual product after each cycle to prevent it from contamination of next production.

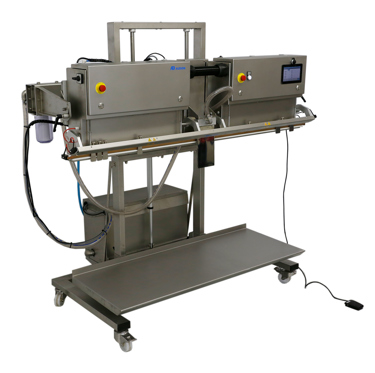

PSR1720 Zoom

An integrated vacuum/ gas flush system

The Power Sealer PLUS IP65 Bag-in-Box configuration comes standard with a powerful integrated vacuum system and seal head float down software to facilitate an optimized vacuum result and full controll of vacuum sealing big bags prepacked in a box.

This vacuum packaging solution is equipped with a Busch centrifugal pump. The vacuum pump offers effective air cooling, long service life, low maintenance, dry and contact-free operation and high pressure differentials thanks to two compression stages. In addition, this powerful pump has a very low noise level thanks to a fully enclosed unit and internal silencers.

The vacuum system can be combined with gas flush to create modified atmosphere packaging (MAP). The gas flush system ensures safe and quality-controlled packaging of all kinds of products and extends the shelf life of food products, can provide sterile protection essential for medical instruments and minimizes the change of metals oxidizing of e.g. electric equipment and delicate components.

The VAC PSR PLUS IP65 Bag-in-box is standard fitted with many cutting edge vacuum features and exhaust features, which is why they are ideal for use in a wide range of applications including cleanroom environments.

The integrated vacuum system can be used for:

  • Volume reduction of the package to save storage and shipment costs
  • Applying a modified atmosphere (MAP) to extend the shelf-life of food products
  • Prevention of oxidation of, for example, metal/electrical components

Benefits

The Audion PSR PLUS IP65 Bag-in-Box gives you the following benefits

Powerful vacuum pump:
Robust construction, effective air cooling, long service life, low maintenance, dry and contact-free operation, high pressure differentials thanks to two compression stages.
Low noise level:
Internal silencers and a protection cover facilitate a very low noise level.
Ingenious technology:
You are assured of the highest seal integrity and efficiency thanks to standard functionalities such as Audion Touch Techware, enabling storage of up to 50 recipes and exact adjustment of every packaging cycle for each product.
State-of-the-art technology:
Combining the robust and reliable construction of this Power Sealer PLUS together with the in-house designed software ensures you are using one of the world's leading packaging solutions for effortless, efficient and advanced sealing of pre-boxed/barreled bags.
Accomodates large package sealing:
Extra long 1720 mm impulse seal bars, an extra wide vacuum nozzle and motorized frame with wide set out legs facilitate to process extra wide bags. The open head design of the machine allows large bags to fit under the sealer. Equipped with bag stretcher fingers to minimize wrinkles in the seal.
IP65 heavy-duty design:
The IP65 construction protects the product against the risk of contamination. Designed for demanding environments like food industry and chemicals where hygiene and safety during operation are essential. IP65 Dust and splash free construction.
Consistent seal quality:
Audion Temperature Control system integrated, ensuring consistent seals even during intensive operation. 50 program memory to always have the ideal setting at hand for each different product/film type.
Protected seal cycle:
No errors can be tolerated. Therefore an integrated 3 level log-in (operator, supervisor and administrator protected seal cycles) comes standard in the Power Sealer PLUS IP65.
Advanced validation:
The standard built-in Audion Touch Techware includes the validatable Audion Temperature Controller and runs on in-house designed software allowing you to fully control and monitor the critical seal parameters. The user-friendly HMI touch screen allows you to run your packaging process efficiently and effortlessly.
Data transfer:
The USB port enables you to download batch information of critical seal-parameters.
Optimized safety:
Standard equipped with several features that guarantee the safety of the operator and product. Furthermore, this configurable solution can be customized to support a smooth packaging in specific environments.

Everything-under-one-roof, match the Power Sealer Bag-in-Box 1720 with Audion film

Click here

Explore your options

Customize your Power Sealer PLUS IP65 Bag-in-Box to your unique requirements

Particle ejection system:

To remove residual product from the vacuum system after each cycle, the vacuum system is cleaned by means of an outward thrust of air. This prevents contamination in the lines and nozzle and also prevents residual product from being mixed/contaminated during the production of a different product.

Barcode scanner:

The Audion Touch Techware allows you to store 50 pre-programmed recipes with critical process variables. For quick access to these recipes, you can recall them using a barcode scanner. This way you can efficiently and safely start the sealing process of your product with the correct settings.

User level administration:

User-level registration, access rights and user registration can be password protected to maintain full control over the seal integrity of your packaging processes. Operator data is also included in the downloadable information for analyzing purposes.

Superb calibration & repair services

Audion offers in-house expertise for the professional and timely maintenance or (re)calibration of your (new) machine according to the highest and valid standards. (Wearing) parts are available from stock so that you can promptly resume production.

Calibration Services Audion

Discover our Power Sealer line:

  1. Power Sealer

This no-nonsense Power Sealer forms the solid basis of the renowned Power Sealer line. The outstanding 5 mm sealing performance is achieved by a pneumatic bi-active and time-controlled impulse sealing system. Optional vacuum system feature can be integrated.

  1. Validatable Power Sealer

This model is validatable and generates an 8 mm temperature- and time controlled seal. The validation enables that critical seal variables like seal force, seal temperature and seal time are being controlled. Optional vacuum system feature can be integrated.

The Power Sealer TC is a high-performance temperature controlled sealing machine designed for demanding packaging needs in the high-tech and food industries. It features a durable stainless steel housing, touchscreen interface, and powerful bi-active and pneumatic seal bars that ensure consistent, airtight seals. Optional vacuum system feature can be integrated.

  1. Power Sealer PLUS

The next step in the Power Sealer line is the Plus version. With its unique and most precise system of validation it meets todays' most stringent packaging requirements. 8 mm Temperature- , time- and force controlled seal. Includes Audion Touch Techware. Optional vacuum system feature can be integrated.

  1. Power Sealer PLUS IP65

Our flagship model in the Power Sealer line. Especially designed for dusty, humid or regulated (clean room) production environments. Highly advanced validatable impulse sealer. An 8 mm temperature-, time and force controlled seal. Includes Audion Touch Techware. Optional vacuum system feature can be integrated. Also available in Bag-in-box configuration.

The Power Sealer TC XL and Power Sealer PLUS XL have the largest sealing length of the Audion Power Sealer range. With a sealing length of 2500 mm they can effortlessly provide your largest products with customized packaging or protective covers by means of an 8 mm seal. Available in a temperature controlled model (PSR TC XL) and a validatable model (PSR PLUS XL) with validation on temperature-, time- and seal force controlled sealing. Optional vacuum system feature can be integrated.

Unique steamsealer enabling bags to be sealed without electrical power supply. Instead, it uses pressurized steam to operate. suitable for explosive environments. 8 mm temperature controlled seal. Optional vacuum system feature can be integrated.

Combi Powersealers2 (1)

Let's have a chat

Do you want to know what the Audion PSR PLUS IP65 Bag-in-Box can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most.

Webshop products
International Sales

International Sales
Audion

Related products

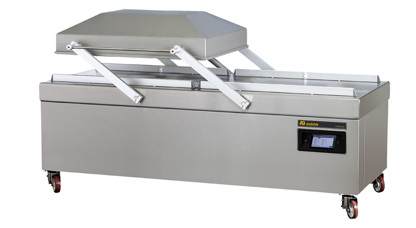

VMS 503 Validatable

VMS 503 Validatable

Validatable double chamber with a flat plate

  1. Pump capacity: 300 m3/h
  2. Seal length: 1080 mm (front) + 1080 mm (back)
  3. Chamber size: (2x) 730 x 1080 x 280 mm
  4. Chamber type: Flat (stainless steel)
  5. Chamber material: Stainless steel
Vacuum Power Sealer PLUS IP65 Bag-in-box

Vacuum Power Sealer PLUS IP65 Bag-in-box

For bag-in-box packaging operations that require complete quality control, high sanitation and excellence in vacuum results

  1. Seal width: 8 mm
  2. Seal length: 1720 mm
  3. Type of seal: Temperature-, time-, and pressure controlled impulse seal
  4. Powered: Pneumatic (air)
  5. Operating: Touchscreen /50 pre-set recipes
  6. Validatable: Yes
  7. Vacuum & gas flush system: Yes, standard
  8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
  9. Accuracy: ++++
Power Sealer EX

Power Sealer EX

Explosion-proof steam impulse sealer capable of operating in hazardous environments

  1. Seal width: 8 mm
  2. Seal Length: 610 | 800 | 1000 mm
  3. Type of seal: Steam impulse seal, temperature and time controlled
  4. Operating: Air PLC controller - seal time/vacuum time (on vacuum PSR ex models)/seal temperature
  5. Validatable: No
  6. Vacuum & gas flush system: Yes, optional vacuum
  7. Compatible with: Explosion zone 1 (class 1, division 1) zone 2 (class 1, division 2 and ATEX
  8. Accuracy: +++

FAQ Power Sealer PLUS IP65 Bag-in-Box

Frequently asked questions regarding Power Sealer PLUS IP65 Bag-in-Box

PSR PLUS IP65 Bag-in-Box

A bag-in-box sealer is a vacuum sealer for large liner bags inside a box, drum or barrel. With the Power Sealer PLUS IP65 Bag-in-Box, you position the package beneath the sealer, for example on a conveyor, support or pallet. The motorised frame lowers the sealing head and inserts the extra-wide vacuum nozzle into the bag. The machine then extracts the air, adds protective gas if required, and closes the bag with an 8 mm wide seal. Heavy-duty vacuum bags are used as liners.

The Power Sealer PLUS IP65 Bag-in-Box measures 1869 × 1111 × 1753 mm and weighs 290 kg. It has a seal length of 1720 mm and a seal width of 8 mm. The bi-active sealing bars produce a flat seal at temperatures up to 200 °C and handle films from 2 × 20 to 2 × 300 microns. The power rating is 2200 W and the required compressed air pressure is 0.6 to 1.0 MPa. The housing is made of AISI 304 stainless steel and has an IP65 protection rating. Bag stretchers, which keep the bag tightly stretched during sealing, are included as standard.

The Power Sealer Bag-in-Box is equipped with a Busch SAMOS SB 0080 D2 as standard. This dry-running, contact-free vacuum pump is air-cooled and requires little maintenance. Two compression stages provide a high pressure differential. The enclosed housing and internal silencers keep noise levels low. An 85 m³/h Busch side-channel pump is available as an option, also in an ATEX version.

The motorised frame automatically lowers the sealing head and vacuum nozzle. This allows the nozzle to reach deeper into the bag and extract air close to the product, without the operator having to lift the bag. You set the required height in the software and save it in a recipe together with the other process parameters. Up to 50 recipes can be stored.

Yes. The legs of the motorised frame are spaced far enough apart to position a Euro pallet with a box or drum beneath the sealer. This allows you to vacuum-pack and seal the liner bag while the box or drum remains on the pallet. The packaged products can then be transported onwards on the same pallet.

The Power Sealer Bag-in-Box is suitable for vacuum-packing bulk products in large liner bags inside a box, drum or barrel. Examples include food products and powders in the pharmaceutical and chemical industries. The gas flushing system allows protective gas to be added to the packaging to help extend food shelf life and reduce oxidation of metal and electronic components.

Yes. The Power Sealer Bag-in-Box can perform multiple consecutive cycles of vacuum extraction and protective gas flushing to reduce the residual oxygen level in the bag. The bag is then sealed airtight. You save the number of cycles and the vacuum and gas flushing times in a recipe. The machine triggers an alarm if deviations exceed the set tolerances. This allows you to repeat the set packaging cycle for each batch.

Yes. The Power Sealer PLUS IP65 Bag-in-Box supports validation of your sealing process by monitoring sealing temperature, sealing time and sealing pressure. Vacuum and gas flushing times are also monitored, with adjustable tolerances and alarms. Batch information can be downloaded via USB. Audion provides support with IQ/OQ and certified calibration. These features and services help you demonstrate that your process meets the specified requirements; the machine alone does not automatically make the packaging process validated.

After each vacuum cycle, the Particle Ejection System (PES) blows residual product out of the vacuum system using an outward-directed airflow. This helps prevent powder build-up in the pipes and vacuum nozzle and reduces the risk of residual product entering the next production batch. A powder filter with a quick-cleaning system is also available.

Yes. The Power Sealer Bag-in-Box records sealing data in downloadable batch information. To link this data to a specific bag, the bag must be identifiable, for example with a label. The optional label printer lets you add traceable information to the packaging. A barcode scanner helps recall the correct sealing recipe. User Level Administration lets you manage users and password-protected access rights; user details are included in the batch information.
