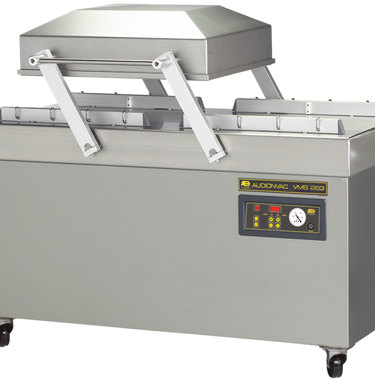

Audionvac VMS 263

Industrial double chamber vacuum packaging machine

The hygienic construction ensures reliability in operation and low maintenance costs. This double chamber vacuum packaging machine has an effective vacuum chamber has a size of 2x 610x500x240.

Richly equipped as standard with soft-air, 10 program memory, time control. All together a rock solid machine which gives you benefits for years.

“Double chamber with a powerfull 100 m³/h Busch pump”

This machine can also be supplied as validated version.

Please click here for:

  • Standard time control
  • Standard soft air to vacuum seal sharp products
  • Busch vacuum pump
  • Standard double seal
  • Maintenance friendly and easy to clean construction
  • Made from high quality materials
  • Standard 2 seal bars front and back which doubles your packing capacity
  • Standard with 10 program memory Standard digital control panel with 10 program memory
  • Easy to operate with digital display
  • Stainless steel chamber
  • Standard equipped with 400-3-50 power supply
  • Gas flush, modifies atmosphere packaging (MAP)
  • Wide seal 10 mm
  • Bi-active seal, is recommend to use when vacuum sealing aluminum or thicker bags.
  • Inclined plate for 4 silicone holders
  • Aluminum end blocks, for heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
  • Aluminum end blocks for bi-active, for heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
  • Validatable
  • Calibration
  • External pump
  • Cut-off seal, to easily tear off the residual plastic.
  • 1-2 cut-off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
  • Easy swing, enables the operator to easily move/swing the lid from one side to the other side of the vacuum packaging machine.
  • Sensor control, constant, guaranteed end vacuum
  • Power supply: 200-3-50/60 / 220-3-60
  • Adaptation for external exhaust (on request)
  • Filling plates for lid
  • Electronics
  • Meat & Poultry industry
  • Food processing
  • Direct marketing
  • Non-food industry

Specifications

ProductAudionvac VMS 263
Seal length610 mm
Seal width3,5 mm double seal
Position of the sealing bar
Effective chamber size (LxWxH)(2x) 610 x 500 x 240
Type of machine
Validatable/calibratable/medical, Vacuum chamber, Double chamber, Medical
ModelFloor, Double Chamber
CoveringStainless Steel
Pump capacity100 m3/h Busch pump
Pedal operatedNo
Type of filmPA/PE, Vacuum Bags
Thickness of film2 x 150 micron
Type of packageBag
Branche/ApplicationBackery, Cheese, Coffee & Tea, Fish, Food, Fruit & Vegetables, Industrial Parts, Meat & Poultry, Medical & Laboratory, Office Supplies, Packaging & Logistics, Pet Food, Shop, Warehouse, Food Industry, Pharmaceutical Industry, Medical Industry, Seed Industry, Dental Industry, Laboratories
Type of productGranulate, Powder, Solid
Machine cycle15 – 40 sec
Power3,5 – 5,3 kW
Voltage400V-3-50Hz
Weight345 kg
Machine dimensions920 x 1480 x 1325
