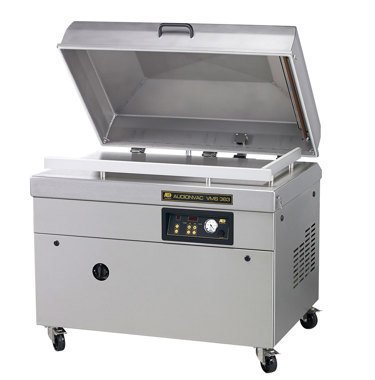

Audionvac VMS 363

Industrial single chamber with flat plate

The VMS 363 is the largest single chamber vacuum packaging machine with flat plate of the Audionvac range. With the 5 different seal bar configuration and a total sealing length of 1090 mm it can’t go wrong.

This strong industrial floor model vacuum packaging machine is available as a basic industrial model and as a full option vacuum packaging machine. Made from heavy industrial materials which makes it a robust and durable packaging machine.

“Audionvac; professional range of vacuum packaging machines”

Richly equipped as standard with soft-air, 10 program memory, time control. All together a rock solid machine which gives you benefits for years.

This machine can also be supplied as validated version.

Please click here for:

  • Standard time control
  • Standard soft air to vacuum seal sharp products
  • Busch vacuum pump
  • Standard double seal
  • Maintenance friendly and easy to clean construction
  • Made from high quality materials
  • Standard digital control panel with 10 program memory
  • Easy to operate with digital display
  • Stainless steel chamber
  • Standard equipped with 400-3-50 power supply
  • 2 seal bars left right which doubles your packing capacity
  • 2 seal bars front back which doubles your packing capacity
  • 2 seal bars front right which doubles your packing capacity
  • 3 seal bars left front right
  • Gas flush, modifies atmosphere packaging (MAP)
  • Wide seal 10 mm
  • Bi-active seal, is recommend to use when vacuum sealing aluminum or thicker bags.
  • Inclined plate for 2 silicone holders
  • Inclined plate for 3 silicone holders
  • Aluminum end blocks, for heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
  • Aluminum end blocks for bi-active, for heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
  • Validatable
  • Calibration
  • External pump
  • Cut-off seal, to easily tear off the residual plastic.
  • 1-2 cut-off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
  • Sensor control, constant, guaranteed end vacuum
  • Power supply: 200-3-50/60 / 220-3-60
  • Adaptation for external exhaust (on request)
  • 300m3 pump
  • Electronics
  • Meat & Poultry industry
  • Food processing
  • Direct marketing
  • Non-food industry

Specifications

ProductAudionvac VMS 363
Seal length
1x 1090 + 1x 610 mm (S/L)
2x 1090 mm (L/L)
2x 660 mm (S/S)
1x 1090 + 2x 610 mm (S/L/S)
Seal width3,5 mm double seal
Position of the sealing bar
Effective chamber size (LxWxH)610 x 1050 x 280 mm (S/L)
1090 x 590 x 280 mm (L/L)
660 x 1000 x 280 mm (S/S)
610 x 1000 x 280 mm (S/L/S)
Type of machine
Vacuum chamber
ModelFloor
CoveringStainless Steel
Pump capacity160 m3 /h Busch pump
Pedal operatedNo
Type of filmPA/PE, Vacuum Bags
Thickness of film2 x 150 micron
Type of packageBag
Branche/ApplicationBackery, Cheese, Coffee & Tea, Fish, Food, Fruit & Vegetables, Industrial Parts, Meat & Poultry, Office Supplies, Packaging & Logistics, Pet Food, Shop, Warehouse, Food Industry, Seed Industry
Type of productGranulate, Powder, Solid
Machine cycle14 – 40 sec
Power4,0 – 4,2 kW
Voltage400V-3-50Hz
Weight465 kg
Machine dimensions 950 x 1200 x 1150 mm
Number of gas nozzles (option)4 per sealing bar (short)
8 per sealing bar (long)
