VDT 6080

The dip tank of Audion offers protection and boosts your product presentation, usable space 600x800x220 mm

Interested in our VDT 6080?

International Sales

We are more than willing to support you with your request or run a demo with your packaging

Food Brochure

The VDT 6080 is the largest dip tank in the Audion range

The number 6080 is derived from the size of the dip tank. The width is 600 mm and the length is 800 mm in the dip tank bath. Ideal size to create high-quality contoured packing for larger-sized products.

Dip tanks or shrink tanks as they are sometimes called help to give a vacuum-packed product a more professional finish. The so-called second skin.



Most of the time the dip tank is used alongside a vacuum packer or vacuum power sealer. After your product has been packed it would be put into the dip tank. The excess plastic that is left after vacuum packing is then shrunk down using the heat of the water in the dip tank and creates a more satisfying finish to the product with no plastic flaps around the product.

To sum up:

  • Improves protection
  • Improves product presentation
Vdt 6080

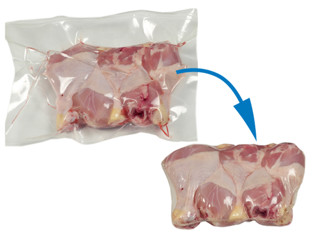

Vacuum Vs Diptank
Vacuum Vs Diptank2
Combi Vacuumkamer Diptank

This makes our machine unique

We work together with you in providing the best quality packaging machines to help you grow your business

Intelligent control unit

The Audionvac VDT 6080 is equipped with a digital control panel. This intelligent control panel is clearly laid out and easy use. It has a accurate temperature control, adjustable dipping cycle time and a water overflow control system. This incombination with the hydraulic drive makes operating it easy and safe.

Energy savings

Audion designed and built the VDT 6080 as environmentally friendly as possible. Not only materials inorder to prodcue have been taken in account but also minimize the power consumption when in use. High quality isolation for contant temperature distribution and special designed fully insulated balls to avoid heat loss / against evaporation.

Eager to provide 3 years warranty

The clever design in combination with the high quality materials makes the Audionvac VDT 6080 a robust and durable diptank - developed to last. Therefore we are eager to provide 3 years warranty.

Easy cleaning - hygienic design

Nobody wants to spend unnecessarily time on cleaning. Therefor Audion made it easy for you. We have installed an easy to use drain tap on the side of the Audion VDT 6080 diptank. Makes cleaning easier and more pleasant.

Videos

Vacuum Vs Diptank

Vacuum packaging with a dip tank

Audionvac vacuum chamber machine in combination with a dip tank to shrink pack the film tightly around the product.

Watch video
Cheese Diptank

Cheese Packaging

Packing cheese with an Audion Power Sealer in combination with a dip tank.

Watch video

For the perfect end result

After vacuum packaging, the product is placed into the dip tank, with hot water filled, for a few seconds. During this bath, the special vacuum shrink film will retract the plastic surplus film around the product. Resulting in a better looking packaging, as well as a reduced packaging volume.

Standard supplied with:

  • Made from High quality stainless steel
  • Plug and play
  • Automatic shelf to place your product on which moves up and down dipping your product into the heated water.
  • Digital control panel
  • Digital time control
  • Easy access for cleaning and maintenance
  • Automatic water level control
  • Built in lime scale protection
Vdt 6080

Benefits

The VDT 6080 gives you the following benefits

Construction:
Made from High quality stainless steel.
Installation:
Plug and play.
Shelf:
Automatic shelf to place your product on which moves up and down dipping your product into the heated water.
Control panel:
Digital control panel for easy operating.
Easy cleaning:
Drain tap on the side to drain the machine for easy cleaning.
Isolation balls:
Special designed fully insulated balls to avoid heat loss / against evaporation of the water inside the VDT 6080 diptank.
Time control:
Accurate digital time control.
Water level control:
Automatic.
Protection:
Built in lime scale protection.

Everything-under-one-roof, match the VDT 6080 with Audion film

Click here

Explore our options

Customize your VDT 6080 to your needs

Audionvac

Use the Audion Diptank in combination with one of our vacuum packaging machines from the Audionvac range for the best packaging result.

Isolation balls

Special designed fully insulated balls to avoid heat loss / against evaporation of the water inside the VDT 6080 diptank.

Cheese Diptank (1)

Let's have a chat

Do you want to know what the Audion VDT 6080 can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most
