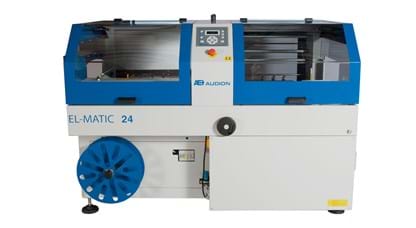

EL-Matic 24
High speed automatic L-sealer
- Type of machine: Automatic L-sealer
- Packing capacity: Up to 3000 packs per hour
- Packing height: 150 mm
Products

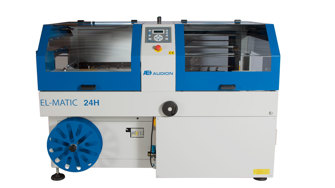

EL-Matic 24H
High-speed automatic L-sealer with a maximum packing height of 200mm
Interested in our EL-Matic 24H shrink sealer?
We are more than willing to support you with your request or run a demo with your packaging
Higher output and higher packing size
The Audion EL-Matic 24H is and industrial L sealer suitable when you would like to pack products with a height of maximum 200 mm. This is 50 mm more than the standard EL-Matic 24. This automatic L-sealer uses an automatic conveyor infeed that can process up to 3600 packages/hour.

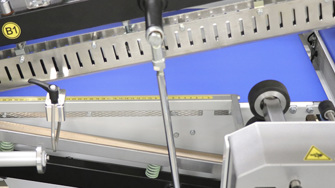

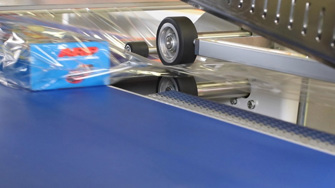

Soft feed conveyors carry products into the system and place them inside the folded shrink film. An adjustable sealing arm raises and lowers as products move through the system. Once sealed, the closed pouch could then be moved into an optional shrink tunnel, shrinking and tightening the film.
The Audion EL-Matic 24H automatic L-sealer helps to automate your sealing process, leading to:
- Increased productivity
- Increased efficiency
- Professional packing results
- Higher protection grade
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
User-friendly touch screen
Works as easy as your own smartphone. Store up to 20 recepies and benefit from the wide variety of options. Firstly to increase the efficiency and secondly to give you a better control of your production and outcome.
Use different materials
Compared to the traditional L-sealers, the Audion EL-Matic 24H provides first of all a higher output as well as the possibility of using polyethylene film besides the traditional shrink films.
Additional packing height - Increase of flexibility
The maximum product height of the EL-Matic 24H is 200 mm which is 50 mm more than the standard version. This increases your flexibility as it makes the type of products you are able to pack wider. So you are not only set for today but also for the future. As you never know what will come.
Safety first
Employees are one of your most valuable assets. Working on a safe way is important to guarantee your workers safety. Audion uses the most modern technology in order to safeguard this. Emergency button, PTFE-coated sealing blades and safety features are built-in as a standard.
Today's technology
Automation is becoming more common in the world of manufacturing due to higher production rates and increased productivity. For manufacturers with high product volumes, automatic L-sealers help to automate the sealing process, leading to increased productivity and efficiency.
Characteristics of the machine which contribute to this are:

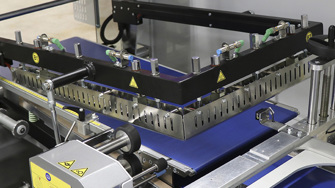

- Motorized sealing bar controlled by inverter and encoder
- Motorized conveyor closing system controlled by inverter included

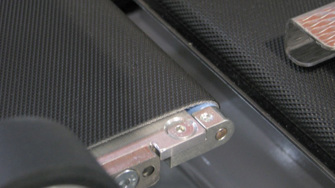

- PTFE-coated sealing blade
- Continuous cycle sealing
- LCD control panel with PLC
- Modular power section made up by: inverter for all motors. IN/OUT (inlet/outlet) digital and analog control modules
- This system allows a simple and precise control of all the machine operations, such as:
-
- possibility of storing up to 20 different operation programs
- automatic control of the sealing bar height
- double adjustment of the sealing blade temperature, both lengthways and broadways
- sealing time adjustment
- possibility of packing single packs or multipacks
- speed of conveyor is electronically adjustable from the control panel
- process statistics
Benefits
The Audion EL-Matic 24H gives you the following benefits
- Very fast cycle
- Up to 3600 packs per hour.
- Flexibility
- Possibility of packing single packs or multipacks.
- Easy operation with touchscreen control system
- All packaging parameters are easily adjustable.
- Automated sealing
- Continuous cycle sealing.
- Motorized systems
- Sealing bar and conveyors are controlled by an inverter and encoder.
- Large film choice
- Now also suitable with polyethylene film.
- User-friendly touchscreen
- Easy and safe control.
- Built-in safety features
- Emergency stop button.
Options
The following options are available on the Audion EL-Matic 24H
- Compliance with Industry 4.0
- HMI 7" Industry 4.0.
- Pre-printed film
- Device for the centering of the printed film.
- Polyethylene film
- Sealing bar for polyethylene from 15 to 60 my.
- Punch hole
- Pneumatic cold film hole punch device.
- Long infeed conveyor
- Longer infeed conveyor + 500 mm.
- Outlet conveyor
- Protected free rollers outlet conveyor step 46 mm length 1000 mm.
Specifications
More specifications of the Audion EL-Matic 24H
- Output up to
- 3600 pack per hour (depending product size, pack collation and type of film)
- Speed of conveyors
- 10 - 30 m/min
- Maximum pack height
- 200 mm
- Maximum size of film reel
- 600 - ø 350 mm
- Sealing bar
- 640 x 510 mm
- Usable films
- Polyolefin, up to 30 µ
- Usable films
- Polyethylene, from 15 to 60 µ with option sealing bar for PE
- Machine size
- 2175 x 1875 x 1665 mm
- Installed power
- 3350 W
- Power supply
- 380 - 415 V, 3PH + N + PE, 50/60 HZ
- Machine nett weight
- 660 Kg
Explore our options
Customize your EL-MATIC 24H to your needs
Conveyor
With the Audion conveyors you can easily move your product to the Audion EL-MATIC 24. The conveyor can be adjusted according to the size and shape of your product to create a packaging process as smooth as possible. This will increase your production efficiency and has a positive impact on your output.ay
Shrink tunnel
For a strong, high clarity, protection and professional presentation of your product. The tunnel has a heating element that heats the products as they move through the machine. Your products are conveyed through the tunnel and are cloaked with loosely fitting shrink film. When your products move past the heating elements, the film shrinks uniformly around the items as they are exposed to the heat.
Let's have a chat
Do you want to know what the Audion EL-MATIC 24H can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most
International Sales
Audion
Related products

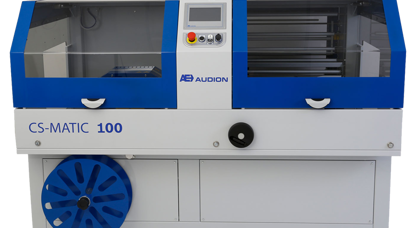

CS-Matic 100
