Validatating the vacuum packaging process

Traceability and control of the packaging process are essential for fulfilling the stringent packaging requirements in life science

Sterile Barrier Packing

Do you have complete control of your packaging process?

In this blog and video, Theodor Todorov, Head of the Life Science and Health department at Audion Packaging Machines, takes you on the journey to our service department’s calibration chamber, where we will present our validatable vacuum chamber, the VMS 163B.

In this article, you can read more about the specifications of this packaging machine and why it is especially suitable for packaging medical instruments.

Audion Packaging Machines offers very diverse yet always high-grade packaging machines for a whole range of sectors, including our validatable vacuum chamber, which is available in a wide range of designs. From tabletop model to free-standing machine and from individual vacuum chambers to double vacuum chambers – the possibilities are extremely varied.


In this video, Theodor Todorov will show you the Audionvac VMS 163B and tell you more about the various features and specifications of this vacuum chamber.

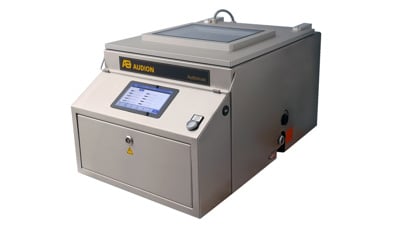

VMS163 B Validatable

Calibration and validation of packaging machines

The very high standards and requirements placed on safety and hygiene are typical for our customers in the medical and pharmaceutical sector. Traceability and control of the packaging process are essential for fulfilling these standards and requirements. If your packaging process requires strict hygiene, safety and traceability, calibration and validation are two vital components in your packaging line.


Calibration and validation process

If you want to be able to monitor the various parameters in your packaging process, you will need a validatable packaging machine. The packaging machine needs to be able to measure whether the various factors such as seal temperature, seal time and seal pressure can be performed at the correct level. Above all, the machine is only able to do this properly when it has been calibrated properly. Audion Packaging Machines offers various validatable packaging machines, such as our Audionvac VMS 163B, plus all the corresponding calibration services, to enable you to start work straight away.

We use your User Requirement Specification (URS) to investigate what the correct technical settings are, and we provide advice on your choice of hardware, software configuration and validation protocol. This is how you can be sure that with an Audion packaging machine, your packaging process is meeting the requirements stipulated by you and the market.


Features of the VMS 163B vacuum chamber

The bi-active 8 mm seal bars make the AudionVac VMS 163B suitable for creating a very strong seal on your packaging material. The 8 mm seal enables the machine to create a very strong packaging, which is more difficult to open compared to a 3 mm or 1.5 mm seal. The vacuum-packing process removes up to 99.9% of the air from the packaging.

The vacuum chamber is also equipped with an accurate Audion Temperature Controller (ATC) and user-friendly touchscreen interface. The VMS 163B enables you to inspect and monitor the following process parameters in each case:


  • Vacuum/gas level
  • Seal temperature
  • Seal time
  • Seal pressure


The packaging cycle is stopped automatically by the machine when one of the critical parameters exceed the alarm limit. The seal data can also be registered and exported by USB so that the data can easily be used by various reports, statistics and audits. By using various user levels, you are ensuring that the right people have access to this data.

Audionvac Vms 333 Valideerbaar Front
Audionvac Vms 883 Valideerbaar
VMS163B Validatable Detail
Packed Product Audionvac Validatable
Audionvac Panel Validatable
Audionvac Vms 883 Valideerbaar (1)
VMS163 B Validatable
Calibration and validation

Expert in-house (re)-calibration services and replacement parts available from stock

User-friendly touchscreen

Create and save up to 50 various recipe templates and benefit from optimized settings suitable for every product.

Cleanroom Compatible

feasible in sterile environments and cleanrooms. Modifying the machine with a dry vacuum pump or by placing the pump outside of the cleanroom.

Products used for this solution

VMS 163B Validatable

VMS 163B Validatable

Tabletop vacuum packaging machine

  1. Pump capacity: 21 m3/h
  2. Seal length: 420 mm (front)
  3. Chamber size: 460 x 420 x 120 mm
  4. Chamber type: Deep (stainless steel)
  5. Housing: Stainless steel chamber and flat aluminum lid
VMS 333 Validatable

VMS 333 Validatable

Validatable single chamber with a flat plate

  1. Pump capacity: 100 m3/h
  2. Seal length: 790 mm (front) + 475 mm (right)
  3. Chamber size: 475x 790 x 200 mm
  4. Chamber type: Flat (Stainless steel)
  5. Housing: Stainless steel
VMS 503 Validatable

VMS 503 Validatable

Validatable double chamber with a flat plate

  1. Pump capacity: 300 m3/h
  2. Seal length: 1080 mm (front) + 1080 mm (back)
  3. Chamber size: (2x) 730 x 1080 x 280 mm
  4. Chamber type: Flat (stainless steel)
  5. Housing: Stainless steel

Benefits of working with Audion

Earth Hero

Durable quality

Audion stands for world-class quality, we embed quality in every process
Audion Innovation Kopie


The innovative solutions of today solve the challenges of tomorrow
Sea (1)


Lead the packaging industry forward through innovation in sustainability

Let's have a chat

Do you want to know more about our range of validatable packaging machines? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most
