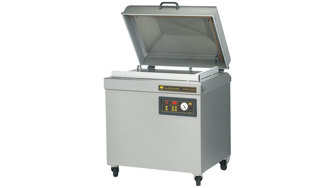

Audionvac VMS 333

Large floor model vacuum chamber.

  • Digital control panel with 10 programs
  • Stainless steel flat working plate
  • Stainless steel lid

This machine can also be supplied as validated version

Standard functions
  • Vacuum (timer control)
  • Seal
  • Soft-air
Extended functions
  • Multi-cycles
  • Gas plus function
  • Expansion reduction
Options
  • Sensor control
  • Bag cut-off seal
  • 10 mm single seal
  • 5 mm bi-active seal
  • 3 seal bars
  • Seal 1-2
  • Gas flush (3 gas pipes on short bar, 4 on long bar)
  • Gas kit
  • Tilted plate for liquid containing bags
  • External pump
  • 200 V – 3 Ph – 50/60 Hz
  • 208/230 V – 3 Ph – 60 Hz
  • 220/380 V – 3 Ph – 60 Hz

Click here for explanation about the options

Specifications

ProductAudionvac VMS 333
Seal length790 mm
Seal width3,5 mm double seal
Position of the sealing bar
Effective chamber size (LxWxH)790 x 460 x 200 mm / 710 x 550 x 200 mm/ 790 x 490 x 200 mm
Type of machine
Vacuum chamber
ModelFloor
CoveringStainless Steel
Pump capacity100 m3 /h
Pedal operatedNo
Type of filmPA/PE, Vacuum Bags
Thickness of film2 x 150 micron
Type of packageBag
Branche/ApplicationBackery, Cheese, Coffee & Tea, Fruit & Vegetables, Industrial Parts, Meat & Poultry, Office Supplies, Packaging & Logistics, Pet Food, Shop, Warehouse, Food Industry
Type of productGranulate, Powder, Solid
