Validatable vacuum VMS 333

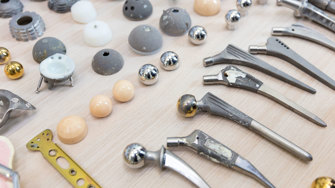

Packing artifical medical bones with Audion validatable vacuum chamber.
Watch video
Products

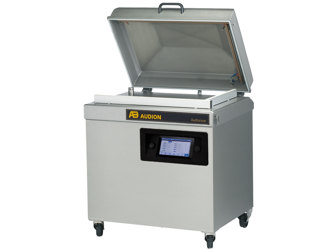

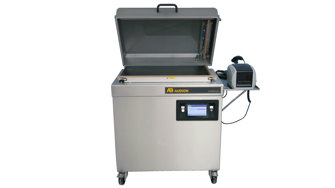

Validatable VMS 333
Biggest single chamber validatable Audionvac fully complying to ISO 11607, provided with easy to clean flat plate & high lid
Interested in our Validatable VMS 333?
We are more than willing to support you with your request or run a demo with your packaging.

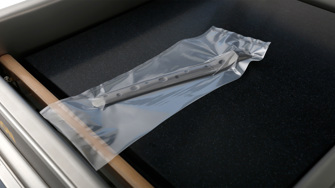

Fully controlled process variables & optimized hygiene

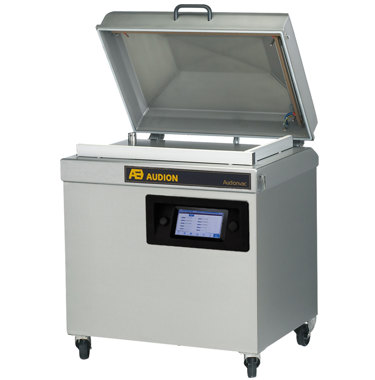

The VMS 333 is the largest single chamber vacuum packaging solution from the validatable Audionvac range. This floor model features an easy-to-clean flat bed, a high lid that enables you to pack larger items, and 2 sealbars to pack multiple items per cycle for optimized efficiency.
Vacuum pressure and gas pressure are controlled and monitored by sensors to ensure the set vacuum level is met after each packaging cycle to guarantee safety and quality of your products.
The seal time starts counting when the set temperature is reached. This prevents inconsistencies due to heat built-up in the sealing bars while enabling consistent and reliable seals after each finished cycle. Powerful bi-active and pneumatic 8 mm seal bars enable high pressure sealing for a wide variaty of packaging materials including medical sterilization pouches used in demanding industries that require utmost seal integrity.
The validatable VMS 333 comes with unique Audion Touch Techware technology that offers full control over the process variables: vacuum/gas pressure, seal temperature, seal time and seal pressure. This advanced vacuum chamber is compliant to ISO 11607-2 being applicable to industry, life science, and medical sterilized device packaging operations.
An alarm function automatically aborts the sealing cycle when a deviation in the process variables occurs during monitoring. All critical seal data can be recorded and exported to a PC for traceable storage/further analysis using a USB stick.
To sum up:
-
- Complies to ISO 11607-2 validation requirements for sealing

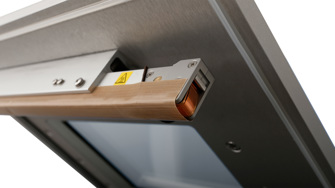

- 2 x Bi-active 8 mm impulse seal bars to pack multiple bags in one cycle
- Adjustable parameters - High quality seal and consistent required vacuum level for reliable packaging results
- Easy-to-clean flat bed chamber and stainless steel high lid
- Equipped with user friendly touchscreen interface (ADC) with memory feature for 50 recipes and data export via USB
- Alarm function with cycle stop
- Various configurable options/accessories available
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business.
Cleanroom compatible
The validatable Audionvac VMS 333 can be implemented in sterile environments and clean rooms by configuring the machine with a dry vacuum pump or by installing the standard oil-pump outside the clean room. To further ensure product safety, all data with the critical process variables can be exported and logged by means of a USB stick. The data content can then be transferred to a PC to be analyzed for various purposes.
Alarm function
Sensors activate the alarm function and abort the packaging cycle in case one of the process variables has exceeded the alarm limit. The acceptable tolerance of the critical parameters can be set individually for each process parameter. Once the relevant parameter deviates from its set tolerance the machine will stop operating. This feature actively supports the packaging process by preventing errors and ensures that the packaging standards for your product are met.
Customized integration
This standard richly equipped validatable vacuum chamber with robust housing, validatable seal bars and Audion Touch Techware make this vacuum packaging solution the most advanced in its segment. In addition a wide selection of options and accessories is available to ensure seamless integration into your packaging process and guarantee your products always meet the highest quality standards.

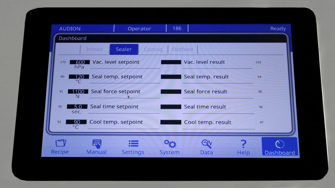

User-friendly Audion touchscreen control panel
The user-friendly Audion Touch Techware control panel can store up to 50 different recipes of process variables that contain the optimal settings for each of your products. Therefore, the right settings are always at hand to optimize your workflow and prevent production errors. This allows you to easily switch from one batch to another, control your production at a high level and increase your efficiency. The easy-to-read display visualizes your settings and process variables to analyze during the sealing process.
Videos
Verification of process variables
The Audion VAL VMS 333 is a validatable floor standing vacuum chamber that requires verification of all process variables on a regular basis. Audion offers a wide range of verification instruments that enable companies to verify their process variables.

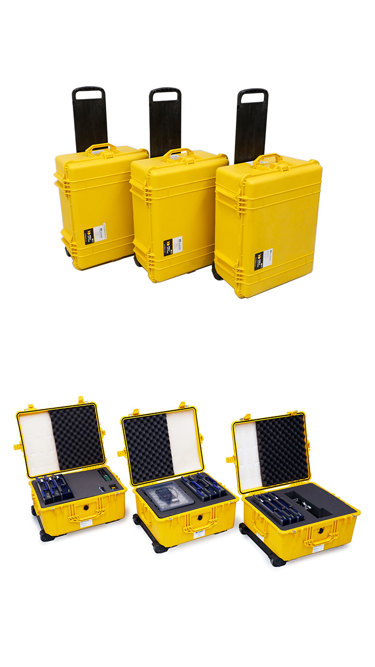

- Available verification instruments include:
- ATM (Audion Temperature Meter) measures and verifies the sealing temperature
- ASPM (Audion Seal Pressure Measurement) measures and verifies the sealing pressure
- AVLM (Audion Vacuum Level Measurement) measures and verifies the vacuum pressure
- Seal Integrity Test (SIT) as a service which includes seal check, dye penetration test and peel test
- Calibration as a service (incl. calibration certificate) certifies the preciseness of the process variables of the packaging machine
- Validation documents:
- Installation Qualification (IQ) ensures that the machine is in good condition and functionality, and is calibrated
- Operational Qualification (OQ) optimizes the machine to create quality seals with customers packaging materials
Benefits
The Audion VAL VMS 333 gives you as an end-user the following benefits:
- Most accurate validation:
- The validation function integrated in the Audion Touch Techware ensures the highest accuracy of validation. It most precisely monitors and controls all critical process variables: vacuum/gas pressure, seal temperature, seal time and seal pressure. Tight tolerance settings make validatable Audionvac models unmatched when compared to other packaging solutions.
- Optimum hygiene:
- Standard bi-active 8 mm impulse sealbars and easy-to-clean flat bed chamber.
- Maximum efficiency:
- Standard 2 seal bars for optimized output, different seal bar configurations possible.
- Maintenance friendly:
- Seal bars are easily removable for cleaning and maintenance.
- Chamber:
- Stainless steel easy to clean flat bed and high lid - for medium/large product sizes.
- Alarm function:
- Generates an alarm and stops the operation when a process variable deviates from the pre-set acceptable tolerance.
- 50 program memory:
- Quick selection of the correct program for your products.
- Soft air:
- To pack fragile or sharp products without damaging the products and the bag.
- Vacuum pump:
- 100 m3/h vacuum pump for a fast packaging cycle.
- Conditioning program:
- If the machine is not used continuously for a certain time, the vacuum pump does not reach the ideal temperature. The moisture contained in the air sucked by the pump stays in the oil, and may lead to condensation inside the pump, which can eventually cause corrosion. To keep the pump and oil in good condition, there is a pump conditioning program available in the control system.
Options
The following options are available on the VAL VMS 333:
- (Re-)Calibration service:
- Audion provides calibration services for our validatable sealers. The critical process parameters (seal temperature, seal force, seal time/speed, etc.) are measured with traceable measuring devices and a calibration certificate will be issued.
- Gas flush:
- Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- External exhaust:
- Avoid evaporation of particles by connecting a hose to the pump exhaust. Air can be exhausted in a different room while having the vacuum pump remain inside the housing.
- External pump:
- Vacuum pump and vacuum chamber are separated from each other to avoid evaporation of particles by the vacuum pump in the same room. Used in cleanroom environments where small particles can affect the manufacturing and quality of a product or assembly.
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
- User administration:
- Personal login ID, password, and user level assignment.
- Automatic lid:
- Improves your ergonomics, optimizes your production output and guarantees safety.
- Operation panel on extended arm:
- For ergonomic operation and easy check of the process.
- Barcode scanner:
- Quick recipe change by scanning a barcode.
- Label printer:
- For printing tracing information on labels and apply on bags.
- Measuring & testing equipment:
- Equipment to measure performance of your seal or packaging machine.
- Power supply:
- 200V-3P-50/60Hz | 220V-3P-60Hz

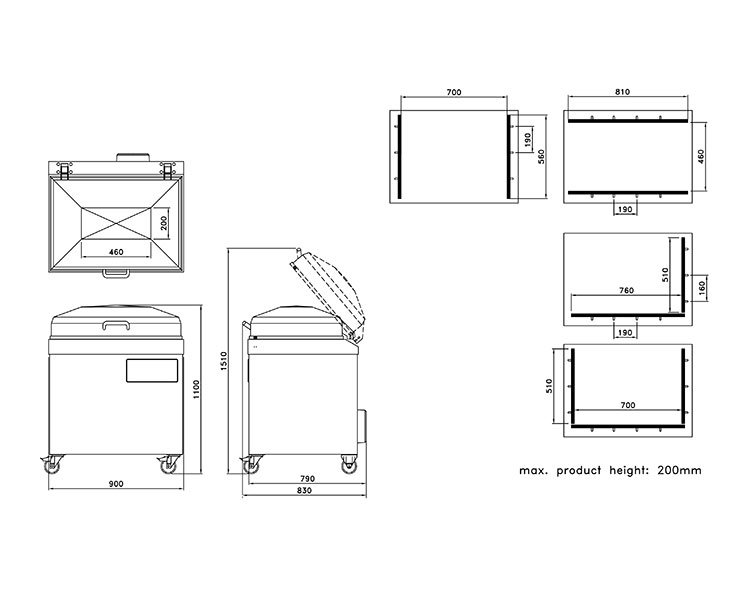

Specifications
Please see below more specifications of the Audionvac VAL VMS 333:
- Seal bar front-right:
- 790 / 475 mm (standard)
- Seal bar front-back:
- 790 / 790 mm
- Seal bar left-right:
- 475 / 475 mm
- Seal width:
- 8 mm bi-active
- Effective chamber size (LxWxH):
- 475 x 790 x 200 mm (standard)
- Pump capacity:
- 100 m3/h
- Controlled process variables:
- Vacuum/gas pressure, seal temperature, seal time, seal pressure
- Audion Touch Techware:
- High-end validation software with integrated Audion Temperature Controller (ATC), uniquely designed by Audion to meet the most stringest requirements in validatable packaging environments
- 50 program memory:
- Pre-set critical process variable recipes
- Machine cycle:
- 20 - 45 sec
- Chamber material:
- Stainless steel lid and chamber
- Housing material:
- Stainless Steel
- Type of film:
- PA/PE, vacuum bags, aluminum laminated bags
- Thickness of film:
- 20 - 400 micron
- Required external air pressure:
- 0,3 MPa
- Power supply:
- 400V-3P-50Hz (standard)
- Power consumption:
- 2,2 – 3,4 kW
- Weight:
- 250 kg
- Machine dimensions (LxWxH):
- 790 x 900 x 1100 mm
Explore our options
Customize your VAL VMS 333 to fit your needs
Label printer
Print important batch information and operator data on labels via a label printer. Once the content is printed on the label, the operator applies the label manually on the packed pouch.
Gas flush:
Enables Modified atmosphere packaging (MAP) to extend the shelf life of your product or prevent oxidation of (delicate) metal components such as prints
Validation documentation (IQ/OQ)
Installation qualification (IQ) and Operational qualification (OQ). Our team of experts will conduct multiple tests with different scenarios with your pouches to determine that our machine meets the required packaging standards.
User-Administration
User level registration, access rights and user registration can be protected by passwords to keep full control over the seal integrity of your packing processes. Includes: Personal login ID, password, and user level assignment
Pump options for cleanroom use
The oil-pump is placed outside the cleanroom in order to avoid contamination of the sterile environment. As an alternative you can also replace the standard oil pump for an optional dry vacuum pump.
External exhaust
Via the external exhaust you are able to connect an additional hose which will discharge the used air outside of the cleanroom. This feature is suitable for sterile environments in the pharma/medical industry.
