XL validatable double-chamber Audionvac that offers a high level of seal integrity, consistent vacuum results and convenience
We are more than willing to support you with your request or run a demo with your packaging.

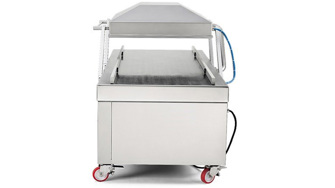

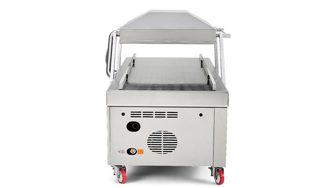

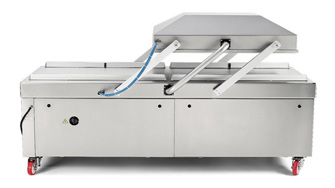

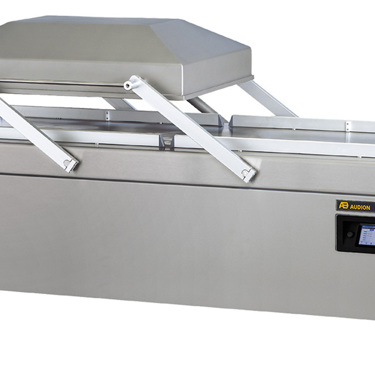

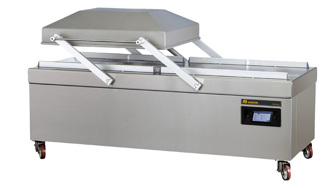

The validatable VMS 503 is an extra large double vacuum chamber from the validatable Audionvac range. This floor model features an easy-to-clean two flat bed chamber for easy cleaning. The stainless steel swinging high lid and 2 sets of double seal bars allow you to safely pack larger items and multiple items in one cycle for optimum efficiency and production output.
The Audion Touch Techware with integrated Temperature Controller offers you full control over the process variables: vacuum/gas pressure, seal temperature, seal time and seal pressure. An alarm function automatically aborts the sealing cycle when a deviation in the process variables occurs during monitoring. All critical seal data can be recorded and exported to a PC for traceable storage using a USB stick.
Vacuum pressure and gas pressure are controlled and monitored by sensors to guarantee the set required vacuum level is consistently achieved, thereby ensuring the safety and quality of your products.
The high-pressure bi-active seal bars produce an 8 mm hermetic seal in a wide variety of packaging materials including medical sterilization pouches used in demanding industries that require utmost seal integrity.
The validatable VMS 503 is compliant to ISO 11607-2 being applicable to industry, life science, and medical sterilized device packaging operations.
To sum up:
We work together with you in providing the best quality packaging machines to help you grow your business.
Dual flat bottom chambers and a swinging high lid provide the ability to pack large or multiple items in one cycle. You can pack your products with double the speed of a single chamber Audionvac by preparing a chamber during the seal cycle of the other. The swinging lid is easy-to-use and accomodates medium to large (batch) packaging productions. A wide selection of options and accessories is available to ensure seamless integration into your packaging process and to guarantee your products meeting the required quality standards.
The user-friendly Audion Touch Techware control panel can store up to 50 different recipes of process variables that contain the optimal settings for each of your products. Therefore, the right settings are always at hand to optimize your workflow and prevent production errors. This allows you to easily switch from one batch to another, control your production at a high level and increase your efficiency. The easy-to-read display visualizes your settings and process variables to analyze during the sealing process.
Sensors activate the alarm function and abort the packaging cycle in case one of the process variables has exceeded the alarm limit. The acceptable tolerance of the critical parameters can be set individually for each process parameter. Once the relevant parameter deviates from its set tolerance the machine will stop operating. This feature actively supports the packaging process by preventing errors and ensures that the packaging standards for your product are met.
The validatable Audionvac VMS 503 can be implemented in sterile environments and clean rooms by configuring the machine with a dry vacuum pump or by installing the standard oil-pump outside the clean room. To further ensure product safety, all data with the critical process variables can be exported and logged by means of a USB stick. The data content can then be transferred to a PC to be analyzed for various purposes.

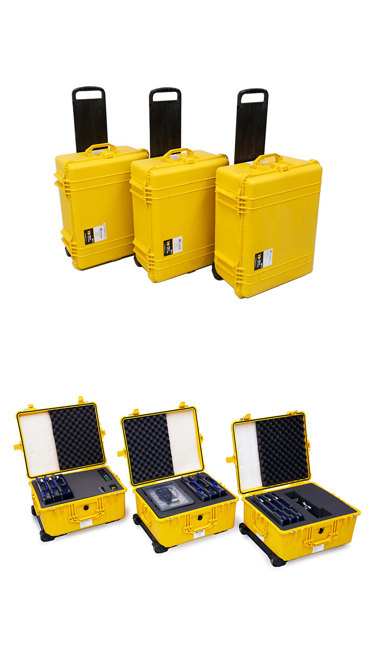

The Audion VAL VMS 503 is a validatable double vacuum chamber that requires verification of all process variables on a regular basis. Audion offers a wide range of verification instruments that enable companies to verify their process variables.
The Audion VAL VMS 503 gives you as an end-user the following benefits:
The following options are available on the VAL VMS 503:
Please see below more specifications of the Audionvac VAL VMS 503:
Customize your VAL VMS 503 to fit your needs
Installation qualification (IQ) and Operational qualification (OQ). Our team of experts will conduct multiple tests with different scenarios with your pouches to determine that our machine meets the required packaging standards.
User level registration, access rights and user registration can be protected by passwords to keep full control over the seal integrity of your packing processes. Includes: Personal login ID, password, and user level assignment
Print important batch information and operator data on labels via a label printer. Once the content is printed on the label, the operator applies the label manually on the packed pouch.
Multiple vacuum and gas flush cycles before the seal production. Enables the perfect MAP conditions to preserve prestine product quality and protection.
The oil-pump is placed outside the cleanroom in order to avoid contamination of the sterile environment. As an alternative you can also replace the standard oil pump for an optional dry vacuum pump.
Via the external exhaust you are able to connect an additional hose which will discharge the contaminated air outside of the cleanroom. This feature is suitable for sterile environments in the pharma/medical industry.
Do you want to know what the Audion Validatable models can offer for your company? Please feel free to contact us as we are looking forward to explore together which packaging solution will benefit you most.
