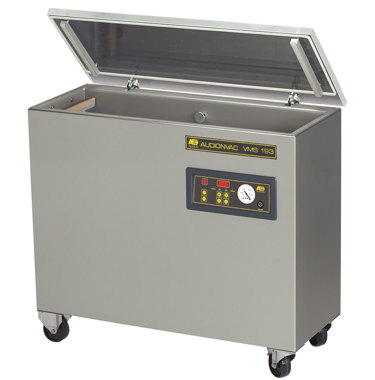

Audionvac VMS 193

The lengthy vacuum solution, ideal for fish packaging

With its effective chamber dimensions of 320 x 890 x 100 mm, this Audionvac is ideal for long products. Especially in the fish industry, this machine has already proven its worth. Thanks to its flexibility in options, it finds excellent use in various other markets that opt for convenience and consistent performance.

VMS 193's recessed stainless steel chamber is suitable for heavy-duty production and is easy-to-clean due to its rounded edges. The lid features a large sight glass to monitor the correct placement of your products and proceeding packaging cycle.

The configuration with two seal bars (left/right) allows various longer products to be reliably packed at once. Optionally, you can also choose a configuration with 1 long sealing bar at the front, allowing you to use the entire width of the chamber for vacuuming batches of medium-sized products.

Various advanced and convenient options can be selected to obtain the best fit for your food and non-food products.

To sum up:

Suitable to vacuum large lengthy objects and food, e.g. whole fish
Configurable to create the perfect packaging solution
Easy-to-clean stainless steel chamber
Lid with sight glass, for monitoring convenience
Powerful 63 m3/h vacuum pump, low in maintenance

This makes our machine unique

We work together with you in providing the best quality packaging machines to help you grow your business

Extra visual control

To safeguard the packaging process and ensure the quality of your product, the lid offers a convenient viewing window. This allows you to check the products are correctly positioned before starting the packaging cycle.

Fully HACCP compatible

This packaging solution fully complies to the high requirements of the HACCP (Hazard Analysis Critical Control Point), a generally accepted practice used in the food production/processing industry. Your food quality and safety are our highest priority.

Easy-to-clean

By using stainless steel you are assured of a durable robust machine suitable for heavy-duty packaging processes. The rounded corners of the chamber make it very easy to clean.

Highly operational comfort

The standard fitted digital control panel is clearly laid out and easy to program. Multiple programs can be stored and recalled in order to have ideal settings at hand for up to 10 different products / product sizes.

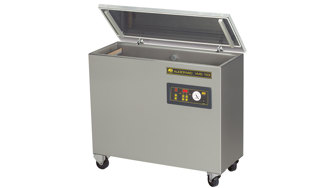

Vacuum packaging machine for long products

The Audionvac VMS 193 is designed for long products which need to be packed. Especially suitable for fish packaging.

Fish have in general a long and narrow shape and are ideal to pack with the VMS 193. The two sealbars will allow you to double your packaging capacity.

Standard the machine is supplied with;

Time control
Soft air to vacuum seal sharp products
Vacuum pump (63 m3/h)
Double seal (2 convex sealing wires)
Insert plate included for a faster cycle and product adjustment
Digital control panel with 10 program memory
3 years warranty

Audionvac videos

Benefits

The Audionvac VMS 193 gives you the following benefits

Food Brochure

Maximum efficiency:: Standard 2 seal bars (left/right) to optimize your output, especially convenient for long products. Optionally a Left/front configuration can be choses to pack multiple shorter products side by side.
Optimum hygiene:: Standard double seal (2 wires); convex sealing wires for safer sealing results.
Time control:: To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
Soft air:: To pack fragile or sharp products without damaging the products and the bag.
Fast cycle:: Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
10 program memory:: Quick selection of the correct program for your products.
Ease of use:: User friendly digital control panel, plug and play.
Multicycle:: Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
Vacuum pump:: 63 m3/h vacuum pump for a fast packaging cycle.
Maintenance friendly:: Easy pump maintenance and cleaning program; seal bars are easily removable for cleaning and maintenance.
Lid:: Flat transparent lid allows monitoring packaging process.
Chamber:: Stainless steel easy to clean deep chamber - for long packages.
Warranty:: 3 years.

Options

The following options are available on the Audionvac VMS 193

Cut-off seal:: Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic
Wide seal:: 8 mm flat seal for a more aesthetic and professional sealing result
Sensor control:: The vacuum cycle will stop when the exact end vacuum has been reached. In this way a constant and guaranteed vacuum is reached.
Liquid control:: The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
Inclined plate:: Enables liquid products to be placed in an angle to avoid the bag content from spilling
Gas flush:: Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
Number of gas nozzles:: Per sealing bar - left/right (2/2); left/front (2/6)
External pump:: Vacuum pump and vacuum chamber are separated from each other to avoid evaporation of particles by the vacuum pump in the same room. Used in cleanroom where small particles can affect the manufacturing and quality of a product or assembly.
Power supply:: 230V-1P-50Hz | 220V-1P-60Hz | 200V-3P-50/60Hz | 220V-3P-60Hz

Specifications

More specifications of the Audionvac VMS 193

Get drawing Get data sheet

Seal bar left-right:: 320 / 320 mm (standard)
Seal bar left-front:: 280 / 940 mm
Seal width:: 2 x 3,5 mm double seal (convex sealing wires)
Effective chamber size (LxWxH):: 320 x 890 x 100 mm (standard)
Pump capacity:: 63 m3/h
Digital control panel:: 10 program memory
Machine cycle:: 15 – 40 sec
Chamber material:: Deep drawn stainless steel chamber and flat transparent lid
Housing material:: Stainless steel
Type of film:: PA/PE, vacuum bags
Thickness of film:: 2 x 150 micron
Power suply:: 400V-3P-50Hz (standard)
Power consumption:: 1,8 kW
Weight:: 219 kg
Machine dimensions (LxWxH):: 480 x 1066 x 970 mm

Everything-under-one-roof, match the Audionvac VMS with Audion film

Click here

Explore our options

Customize your VMS 193 to fit it to your needs

Various seal bar configurations:

Adaptable to both the product/batch size and the desired/required seal type. For example: wide seal, which replaces the 2x3,5 mm seal wires for a wide powerful 8 mm seal.

Gas flush

Injecting a gas before the sealing phase increases the product's shelf life, it offers extra protection and it prevents the product from discoloring.

Sensor control

Sensor control calculates when the pre-set percentage has been reached. This guarantees a constant end vacuum of your package and allows you to keep a constant vacuum level of your products continuously.

Liquid control

The Liquid control sensor detects the evaporation point of the liquids (f.i. soups & sauces). It exactly detects when to stop extracting the air and automatically proceeds with the next phase, the sealing of the vacuum bag, preventing drying out of the product, losing weight and contaminating the chamber.

Let's have a chat

Do you want to know what the Audion VMS 193 can offer for your company? Please feel free to contact us as we are looking forward to explore together which packing solutions benefits you most.
