Packing raw materials

Food safety is gaining in importance how can packing contribute to quality?

Safety packaging in food industry

In this solutions we focus at the characteristics and unique features of the Power Sealer and how the product comes into its own in the packaging of end products, semi-manufactured products and raw materials in the food products market.

Food safety is gaining in importance. Consumers are becoming increasingly critical and errors can have a significant impact on a company’s reputation; whilst on the other hand, the number of links from manufacturer to end consumer is only increasing. Packaging is an important aspect within food safety. Packaging needs to protect food products against external influences, helping to combat decay in the process. Packaging also contributes to the perceived quality of the product. With the Power Sealer, Audion Packaging Machines is providing a high-quality and tried-and-tested system for packaging food products.

Vac Psr Packing Cheese

Power Sealer versus vacuum chamber

The Power Sealer is mainly used when packaging food products that don’t require a high vacuum. A high vacuum is a vacuum of almost 100% and the Power Sealer packs products under a vacuum of 60% to 70%. To create a high vacuum, Audion Packaging Machines has solutions in the form of vacuum chambers. The choice between a high vacuum and low air packaging has mainly to do with the food product, semi-manufactured product or raw material that is to be packed. Certain products are not suitable for packaging in high vacuum using vacuum chambers. The removal of all oxygen would distort a soft or fragile product in such a way that it would become unsellable and therefore worthless. The vacuum cycle of the Power Sealer is faster than that of a vacuum box, as only the bag has to be vacuumed and not the complete chamber. The Power Sealer is often used for the bag-in-box and big-bag packaging of products.

Versions of the Power Sealer

Audion has designed several versions and sizes of the Power Sealer for food industry. The Power Sealer can be constructed in a version with a nozzle for vacuum and modified atmosphere packaging or without this nozzle for just sealing. Especially important for the food industry is that the Power Sealer always comes in stainless steel. Also available in IP65 and heat seal versions.

VAL PSR 520 [1]
Vac Psr Packing Cheese
VAC PSR PLUS 720 Op Gemotoriseerd Support
VAL VAC PSR 720 + Support + Cover + Bag Stretchers
Vac PSR 1020 + Support
VAC PSR 1020 Roller Conveyor On SP PSR

Power Sealer with temperature-controlled sealing system

The Power Sealer with temperature-controlled sealing system is essential to obtain a consistent quality seal even during intensive use. In the food sector in particular, we can see that there is plenty of demand for temperature controlled sealing processes. When packaging food products in liquid or powder form, the surface of the seal may become contaminated (which may affect the sealing process). By using a 8 mm seal width temperature-controlled sealing system, together qit a robust stainless steel body, quality is ensured.

A few benefits of a temperature-controlled sealing system rather than an impulse-controlled sealer include:

  • Constant seal quality even during intensive use
  • Constant seal quality regardless of who is operating the sealer
  • Constant seal quality for materials that are difficult to seal
  • Constant seal quality for products that could contaminate the seal (such as powder)



Vacuum and modified atmosphere packaging

The vacuum and modified atmosphere process involving nitrogen, oxygen or carbon dioxide nitrogen, for example, takes place in the Power Sealer by means of a single nozzle integrated in the machine. This nozzle comes in a range of sizes, depending on the required solution.

Vacuum and modified atmosphere packaging

The vacuum and modified atmosphere process involving nitrogen, oxygen or carbon dioxide nitrogen, for example, is provided by the Power Sealer by means of a single nozzle integrated in the machine. This nozzle comes in a range of sizes, depending on the required solution.

Customisation

Audion Packaging Machines is able to develop fully customised Power Sealers, in terms of both dimensions and technology. Power Sealer comes in lengths from 520 mm up to 2500 mm. Besides, a great deal is also possible in the area of filter solutions (water separation/powder separation), seals and different pump system capacities, for example.

Powersealer USPs:

  • Proven quality in a food environment
  • Different sizes (520/720/1020/1720/2500 mm)
  • Validated sealing process possible
  • IP 65
  • Calibration possible
  • Easy to operate
  • All models made of stainless steel
  • Extensive customisation possible
  • Heatseal design available for aluminum laminates

How to get a Power Sealer

You are of course very welcome to visit our showroom or one of our 65 dealers for further information and a demonstration. As each packaging requires a customised solution, we regularly visit production locations to get a more accurate picture of your packaging challenge, in order to offer you the best solution.




Keep control

Monitor all critical seal parameters and export and investigate the seal data.

MAP and vacuum

Reduces the package size and extends the shelf life of your product.

Flexible and efficient

Flexibility in both user convenience and adaptability to your packaging requirements

Products used for this solution

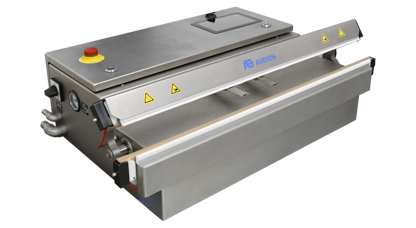

Power Sealer PLUS IP65

Power Sealer PLUS IP65

High-end industrial validatable IP65 impulse sealer, designed for demanding packaging in dusty or humid environments

  1. Seal width: 8 mm
  2. Seal length: 720 | 1020 mm
  3. Type of seal: Temperature-, time- and pressure controlled impulse seal
  4. Powered: Pneumatic (air)
  5. Operating: Touchscreen /50 pre-set recipes
  6. Validatable: Yes
  7. Vacuum & gas flush system: Yes, optional
  8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
  9. Accuracy: ++++
Power Sealer

Power Sealer

Powerful industrial vacuum impulse sealer for heavy duty application, with outstanding seal performance

  1. Seal width: 5 mm (bi-active)
  2. Seal length: 520 | 720 | 1020 mm
  3. Type of seal: Time controlled impulse seal
  4. Powered: Pneumatic air
  5. Operating: Digital control panel/ 9 recipes
  6. Validatable: No
  7. Vacuum and Gasflush system: Yes
  8. Compatible with: EN-ISO 12100: 2010 / 4414:2010 / 14118:2018; EN-IEC 60204-1:2018
  9. Accuracy: ++
Vacuum Power Sealer PLUS IP65 Bag-in-box

Vacuum Power Sealer PLUS IP65 Bag-in-box

For bag-in-box packaging operations that require complete quality control, high sanitation and excellence in vacuum results

  1. Seal width: 8 mm
  2. Seal length: 1720 mm
  3. Type of seal: Temperature-, time-, and pressure controlled impulse seal
  4. Powered: Pneumatic (air)
  5. Operating: Touchscreen /50 pre-set recipes
  6. Validatable: Yes
  7. Vacuum & gas flush system: Yes, standard
  8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
  9. Accuracy: ++++
