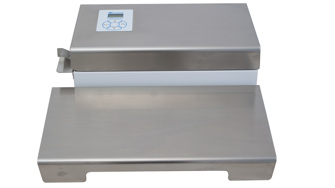

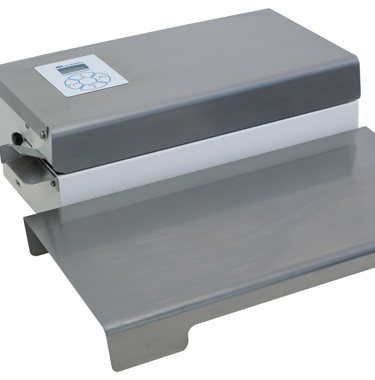

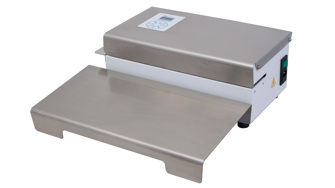

Contimed D 662 MV

Valideerbare roterende sealer voor het medisch verpakken van sterilisatiezakken

Geïnteresseerd in onze D 662 MV?

International Sales

We ondersteunen u graag bij uw vragen of voeren een demo uit met uw verpakking.

Instapmodel valideerbare roterende sealer

De D 662 MV produceert een 12,5 mm multi-line valideerbare seal, volledig compatibel met de sealvereisten van EN 868-5, DIN 58953-7 en de validatievereisten van ISO 11607-2 en ISO/TS 16775.

Deze doorloopsealer is uitgerust met een epoxy behuizing en roestvrijstalen bovenkap voor hygiënische reiniging. Met het digitale en gebruiksvriendelijke toetsenbord kunt u eenvoudig de kritische procesparameters instellen en controleren, zoals sealtemperatuur, sealdruk en doorloopsnelheid. Alle kritische procesparameters zijn traceerbaar en kunnen worden geëxporteerd naar een USB-stick voor logging.

Deze continu-sealer is geschikt voor het sealen van medische zakjes zoals vooraf gemaakte steriele barrièresystemen (EN 868-5), ongecoate Tyvek® en dunne papierlaminaten. Niet geschikt voor het sealen van polyethyleen zakjes.


Om het gebruiksgemak en de verpakkingsprestaties te optimaliseren, wordt deze machine standaard geleverd met een eenvoudig te reinigen roestvrijstalen werktafel die uw verpakkingen ondersteunt tijdens het sealproces.

Dit zorgt voor een rechte seal terwijl de operator zijn handen vrij heeft om de volgende verpakking in de machine te plaatsen, waardoor tijd wordt bespaard.


  • Valideerbaar
  • 12,5 mm multilijn geprofileerde seal
  • Geoptimaliseerde workflow (8 mtr/ minuut)
  • Mogelijkheid om alle procesparameters te traceren en te
  • exporteren (USB-poort)
  • Hoog gebruiksgemak


The Contimed D 662 MV gives you as an end-user the following benefits:

Full control of all critical process parameters.
Adjustable seal temperature:
Seal temperature can be adjusted from 10 - 220°C (± 1%).
Safety and quality controlled:
Temperature alarm (temperature accuracy ± 1%), temperature tolerance +/-5°C , pressure alarm tolerance -15N /+17N, speed alarm tolerance -1,0 m/min. /+0,5 m/min.
Extra seal width:
Wide multiline seal (12,5 mm).
Automatic alarm stop:
The machine stops automatically when sealing parameters are out of tolerance range.
Fast throughput speed:
8 meter/min.

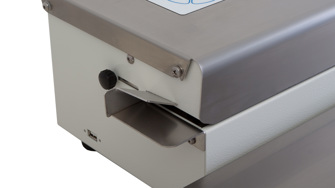

Adjustable infeed guide:
Free edge over the seal 0 - 32 mm.
Data logging:
Parameter monitoring (alarm stop) and data logging/traceability through USB.
User friendly control panel:
LCD display with membrane keyboard (2 lines for 8 characters).
Compact stainless steel design:
Stainless steel top cover for convenient and hygienic cleaning, epoxy housing.
Stainless steel working table:
Standard included, to support bags during sealing.
Requires minimal operator training.

Everything-under-one-roof, match the Contimed with Audion film

Click here

This makes our machine unique

We work together with you in providing the best quality packaging machines to help you grow your business.

User-friendly interface

This model is operated by means of a user-friendly digital panel, enabling you to program the optimum packaging settings. This enables a consistent and reliable packaging result while saving production time and reducing product failure.

Cleanroom Compatible

The validatable D 662 MV can be deployed in sterile environments and cleanrooms to perform consistent, reliable packaging productions. Its robust housing is easy-to-clean including the digitial membrane control panel.

Traceability of sealing parameters

Control and monitor all process parameters, such as seal temperature, seal force and speed. In addition to the provided seal quality guarantee, you are further assured of compliance with the requirements/regulations for your products in your specific industry by means of traceble validation.

Production Consistency

The integrated alarm feature will inform you when the seal temperature is outside of tolerance (+/- 5°C). By having consistency on your production batches you remain assured of the best packaging quality that follow the set requirments of your field.

Calibration, Verification and Validation Services for our Sealers

Audion offers a wide range of instruments and solutions that enable users to test and verify their packaging machines and seals, in order to meet the high market demands. These include:

  • Seal Integrity Test (SIT) as a service which includes:

  • Seal check according to ISO 11607-2 (to check intact seal for a specified seal width)
  • Dye penetration test according to ASTM F1929 (to check no channels or open seals)
  • Peel test according to EN 868-5 Annex D (to check tensile strength of seal)
  • Audion Factory Calibration (incl. Calibration Certificate): (Re-) calibration executed by certified engineers certifies the preciseness of the critical sealing parameters of the packaging machine. Reference standards calibrated under ISO17025 accreditation
  • IQ/OQ Check:
    • Installation Qualification (IQ): an Audion service engineer inspects the packaging machine in your operating environment, checking the following aspects: correct installation, functionality, specifications, critical process parameters and documents. Includes training & certificate.
    • Operational Qualification (OQ): an Audion engineer tests and will register seal integrity of your bag(s) in a test plan. Includes determination of sealing parameters, tolerances, acceptable criteria and worst case testing.

Explore our options

Other related solutions to fit your needs:

Audion Factory Calibration

Audion provides professional calibration services for our validatable sealers. The critical process parameters (seal temperature, seal force, seal time, cooling temperature) are measured with traceable measuring devices and a calibration certificate will be issued.


Installation qualification (IQ) and Operational qualification (OQ) scripts are mandatory within the pharma/medical industry due to the high-quality sealing demands. Our team of experts will conduct multiple tests with different scenarios with your pouches to determine that our machine complies to the necessary packaging demands.

Gerelateerde producten

Available in webshop Contimed D 660 V

Contimed D 660 V

Validatable compact stainless steel rotary sealer suitable for sealing single layer PE or PP

  1. Validatable: Yes
  2. Seal width: 9 mm high profile knurled seal
  3. Throughput: 8 meter/minute (fixed)
  4. Control panel: LCD, 2 lines, membrane keyboard
  5. Interface: USB port, RS-232 port
  6. Integrated printer: No
  7. Conveyor belt: Optional
Contimed D 775 MPCV

Contimed D 775 MPCV

Advanced medical rotary sealer with integrated 2 line printer, optimized connectivity

  1. Validatable: Yes
  2. Seal width: 15 mm multiline seal
  3. Throughput: 3 to 13 meter/minute (adjustable)
  4. Control panel: Touchscreen, 24 seal recipe memory
  5. Interface: 3x USB /2x RS232 /1xEthernet/1x PS2/1xVGA
  6. Integrated printer: 18 dots matrix, 2 lines
  7. Conveyor belt: No
Contimed D 775 MPCV

Contimed D 775 MPCV

Advanced medical rotary sealer with integrated 2 line printer, optimized connectivity

  1. Validatable: Yes
  2. Seal width: 15 mm multiline seal
  3. Throughput: 3 to 13 meter/minute (adjustable)
  4. Control panel: Touchscreen, 24 seal recipe memory
  5. Interface: 3x USB /2x RS232 /1xEthernet/1x PS2/1xVGA
  6. Integrated printer: 18 dots matrix, 2 lines
  7. Conveyor belt: No

Let's have a chat

Do you want to know what the Contimed D 662 MV can offer for your company? Please feel free to contact us as we are looking forward to explore together which packaging solution will benefit you most.
