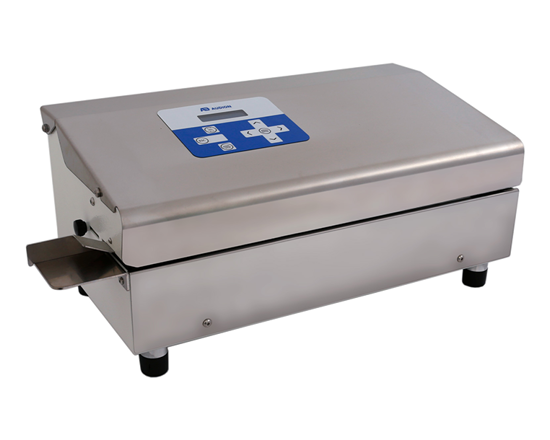

Contimed D 660 V

Contimed D 660 V

This validatable medical rotary sealer offers full control of all critical process parameters and conforms to validation requirements of ISO 11607-2 and its guidance ISO/TS 16775. Full traceability of all critical process parameters is ensured by integrated USB port. An RS-232 serial port makes it possible to connect a label printer. The D 660 V produces a reliable 9mm high profile knurled seal, conform EN 868-5 and DIN 58953.

Band sealer

Contimed D 660 V

Product information

Contimed D 660 V

This validatable rotary sealer offers high user convenience. Alarms on seal temperature, seal pressure and speed can easily be set and monitored through the digital control panel. The USB port together with the RS-232 serial port allow for data recording and processing through USB and connection to label printer.

The D 660 V produces a reliable 9 mm high profile knurled seal and a throughput of 8 mtr/minute. Together with the easy-to-clean stainless steel housing, this rotary sealer offers a compact, cost-effective packaging solution for sealing PE, PP, PVC, multilayered pouches (PA/PE), medical bags (uncoated Tyvek®) or bags with header cards. An integrated cooling function is available for processing Polyethylene pouches.

For additional convenience you can expand the D 660 with accessories like a motorized conveyor belt, roller table or work table to support the products and optimize the packaging process. This keeps your hands free to directly feed the next pouch into the machine.

Advantages:

Validatable (suitable to operate within the central sterile supply department CSSD)
Throughput-speed (8 mtr/min)
High profile 9 mm knurled seal
Automatic seal pressure regulation
Compatible to ISO 11607-2, ISO TS 16775, EN 868-5 and DIN 58953

Benefits

The Audion Contimed D 660 V gives you as end-user the following benefits

Film sealability

Validatable:: Full control of all critical process parameters
Adjustable seal temperature:: Seal temperature can be adjusted from 10 - 220°C (± 1%)
Safety and quality controlled:: Temperature alarm (temperature accuracy ± 1%), temperature tolerance +/-5°C, pressure alarm tolerance +/-20N, speed alarm tolerance -1,0 mm/min./+0,5 mm/min.
Strong seal performance:: 9 mm high profile seal
Automatic alarm stop:: The machine stops automatically when sealing parameters are out of tolerance range.
Seal pressure regulation:: Seal force adjusted to package thickness
Fast throughput speed:: 8 meter/minute optimizes the workflow
Adjustable infeed guide:: Free edge over the seal 0 - 32 mm
Interface:: Integrated USB port and RS 232 port allow data to be recorded or printed
User friendly control panel:: Easy to use digital display (2 lines for 16 characters), membrane keyboard
Compact stainless steel design:: Stainless steel top cover for convenient and hygienic cleaning, epoxy housing
Easy-to-use: Requires minimal operator training

Options

The following options are available for the Audion Contimed D 660 V

Flat 9 mm seal:: A flat pressure roll will be mounted, generating a flat seal (instead of a knurled, profiled seal)
Work Table:: Provides bag support for heavier bags, facilitating a more efficient sealing process. Stainless steel, +/- 480 mm (OT D66 M)
Roller Table:: For supporting heavier products during sealing. Stainless steel, plastic rollers with bearings, +/- 800 mm (RT D66M)
Conveyor:: For smoothly guiding your bags during sealing. Includes input plate. Accomodates a straight line in sealing, especially for heavier bags. Fixed speed of 8 meter/minute (TB 660)
Label Printer:: Thermal transfer label printer (for batch info, operator data) - art. nmmr: LP D66M
Calibration service:: Audion provides calibration services for our validatable sealers. The critical process parameters (seal temperature, seal force, seal time/speed, etc.) are measured with traceable measuring devices and a calibration certificate will be issued.
IQ/OQ:: The purpose of the Installation Qualification and Operational Qualification is to establish documented evidence that the packaging equipment is correctly installed, operates according to requirements, and performs safely.

Specifications

Please see below more specifications of the Audion Contimed D 660 V

Get data sheet

Type of machine:: Band sealer, Semi automatic
Article number:: D 660 V
Model:: Tabletop
Seal width:: 9 mm high profile knurled seal
Seal temperature:: 10 - 220°C
Seal temperature alarm:: Tolerance of ± 5°C from set temperature
Throughput speed:: 8 meter/min. (fixed)
Seal speed alarm:: -1,0 m/min./+0,5 m/min. (speed set at 8,0 mtr/min.)
Seal force:: 85 N (fixed)
Seal force alarm:: -20N/+20N (set seal force 85N)
Seal length:: Unlimited
Communication interface:: USB port, RS-232 port
Control panel:: Digital display and membrane keyboard (2 lines for 16 characters)
Covering:: Stainless steel top cover / epoxy housing
Knife:: No
Type of film:: PE, PP, PVC, multilayered pouches, medical bags (Tyvek®), aluminum laminates or bags with header cards
Thickness of film:: 2 x 100 micron
Compatibility:: ISO 11607-2, ISO TS 16775, EN 868-5 and DIN 58953
Type of package:: Bag, Pouch
Pedal operated:: No
Branche/Application:: Life science (Pharmaceutical, Medical, Healthcare) | high-tech (parts/components)
Weight:: 18 kg
Dimensions:: 554 x 270 x 237 mm
Power supply:: 230 V, 50 Hz
Power consumption:: 500 W
Acoustic emission level:: 70 dB(A)

Everything-under-one-roof, match the Contimed D 660 V with Audion film

Click here

Accessories available

Work table for Contimed

Provides bag support during the sealing and ensures equal sealing performance

Motorized conveyor for Contimed D 660(V) or D 662 MV

Motorized conveyor belt with input plate

Roller table for Contimed D 660/D 662/ D 666

Roller table for Contimed sealers

Entrepreneurship

We love challenges and seize opportunities. It is simply in our DNA.

Commitment

We are dedicated to deliver a high customer value and customer satisfaction which form a paramount contribution to our success.

Co-operation

Our broad knowledge of customer needs and our global, highly committed dealer network, sharing market insights lead to demand-driven innovations, building long lasting relationships.

Calibration, Verification and Validation Services

Audion offers a wide range of instruments and solutions that enable users to test and verify their packaging machines and seals, in order to meet the high market demands. These include:

Seal Integrity Test (SIT) as a service which includes:

Seal check according to ISO 11607-2 (to check intact seal for a specified seal width)
Dye penetration test according to ASTM F1929 (to check no channels or open seals)
Peel test according to EN 868-5 Annex D (to check tensile strength of seal)

Audion Factory Calibration (incl. Calibration Certificate): (Re-) calibration executed by certified engineers certifies the preciseness of the critical sealing parameters of the packaging machine. Reference standards calibrated under ISO17025 accreditation
IQ/OQ Check:

- Installation Qualification (IQ): an Audion service engineer inspects the packaging machine in your operating environment, checking the following aspects: correct installation, functionality, specifications, critical process parameters and documents. Includes training & certificate.
- Operational Qualification (OQ): an Audion engineer tests and will register seal integrity of your bag(s) in a test plan. Includes determination of sealing parameters, tolerances, acceptable criteria and worst case testing.
