Precise weigh counter system to create optimal workflow efficiency
We are more than willing to support you with your request or run a demo with your packaging.

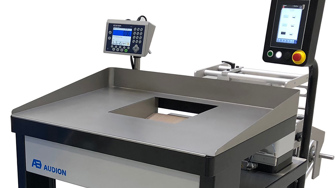

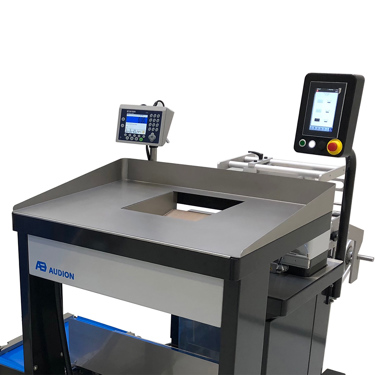

The Audion Table Optiweigh Counter is a semi-automatic counting solution for accurately weigh-counting small parts from 0,1 grams to be packed in bags by Speedpack.
This user-friendly infeed solution consists of a sorting table from which the product can be shifted into the weighing bucket positioned in the center, just above the bag to be filled.
By weighing and counting a sample product the scale is programmed and characteristics of the product are stored in the operation panel. By filling the bucket the weight is instantly measured and the piece count is displayed. Once the required weight is reached, the bucket drops the products into the fixed hopper just above the opened bag and the sealing process is activated.
Available in two sizes of weighing bucket, depending your product size.
We work together with you in providing the best quality packaging machines to help you grow your business
Automatically discharges the products loaded when the desired quantity has been reached (no manual activation needed).

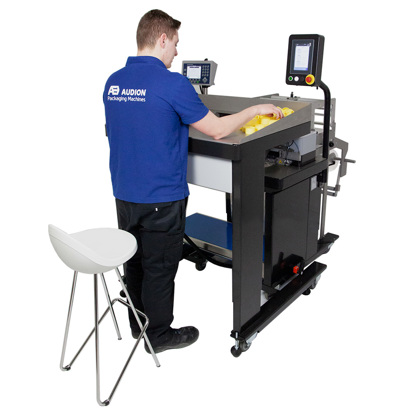

Smart design for ergonomic purposes: the operator can easily operate by standing or sitting on a high chair in front of the machine.
Ideal for products that get stuck or tangle together and are complex to count: the weights now determines the accuratet product quantity.
The next bag is prepared during sealing of the former bag, saving packaging time while maximizing your output.
1. Product weight determination:
The operator defines the weight per product by inserting a defined number of the same parts in the bucket and using the panel functions.
2. Target value determination:
The operator defines the target value (how many parts per bag/ weight per bag).
3. Filling the bucket:

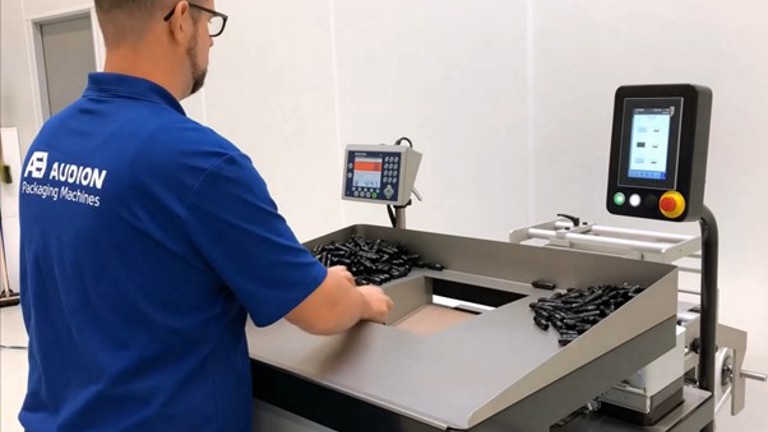

While the operator is shifting products into the bucket, the weighing panel shows the quantity of the product in bucket. When target value has been reached, the colour on the display changes from red to green.
4. Automatic discharge:
The bucket inclines automatically and the product is guided into the bag, the bag will then be sealed.
5. Next packaging:
The bucket is reset to the standard position, the Speedpack prepares a new bag and the operator starts again from point 3.
The Table Optiweigh Counter gives you the following benefits
The following options are available to customize your Table Optiweigh Counter
More specifications of the Audion Table Optiweigh Counter
Customize your Table Optiweigh Counter to your needs
A bucket size can be selected depending the volume of your products. BS3: Bucket size 227 mm x 168 mm or BS8: Bucket size 371 mm x 335 mm
Audion intermittent discharge conveyor belt to boost your packaging process
The working height of the Table Optiweigh counter will be adjusted to our Speedpack. Our account managers will advise you about the possible working heights of Speedpack in various versions.
In our factory a test is performed with your product(s) to program the most appropriate machine settings for optimal packaging quality.
Most flexible and innovative bagger creating variable bag length, optimizing existing labour and warehouse space
Audion intermittent discharge conveyor belt

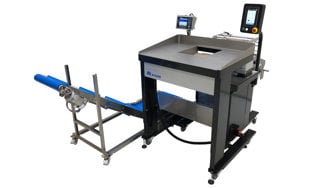

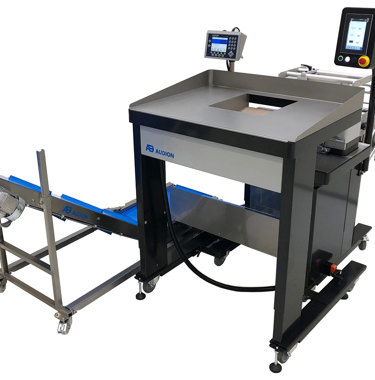

Convenient sorting table combined with an infeed conveyor fitted with deviders
Do you want to know what the Audion Speedpack Hybrid 400 can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most.
